Click on Windows Start -> CATIA -> Environment editor to open the Environment Editor.

Click on Environment -> New to create a new environment.

Environment -> New

-> The New Environment dialog box is opened.

Name entered

Make the desired entry under Name.

Select the just created environment and below, select the variable CATGraphicPath. There, make a right-click and in the context menu, select Edit Variable.

Environment Editor

-> The Variable Editor is opened.

Variable Editor

Under Value, at the end of the displayed string, add a semicolon and following path:

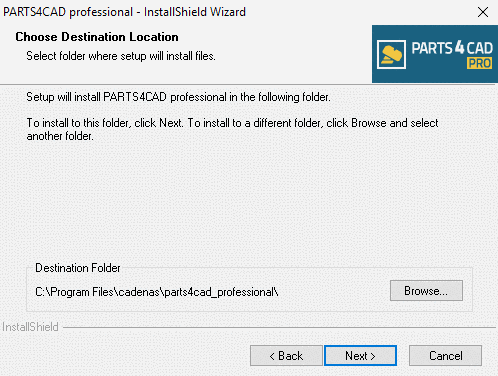

C:\Program Files\cadenas\parts4cad_professional\iface\catia\VB\resources

Confirm with OK.

-> A respective Desktop icon is created.
