1. How can I find a
part without knowing the exact name?
different search methods can be used.

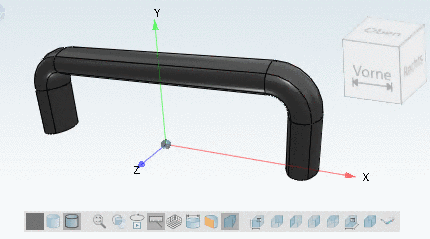

Example: The following
part is searched.
sufficient adequate table values (often very few are sufficient) you
will find the part:

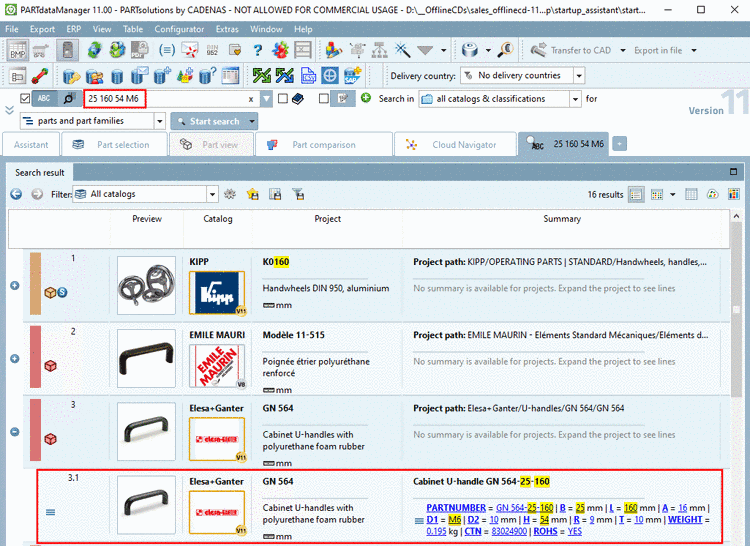

In the case of
our example stating width, length, height and thread is sufficient, in
order to get the desired part from an amount of one million parts at the
third position in the result list.
25 160 54 M6
knowing an unique identifier such as product code or ERP number is

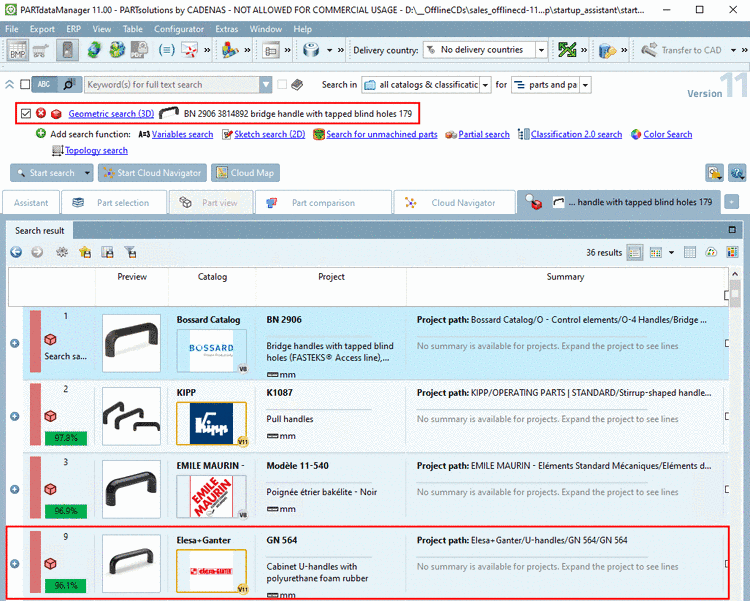

Geometric search (3D)
If you have a
comparison part, regardless whether it's an own part or similar part
from another catalog, the Geometric search
(3D) is appropriate.

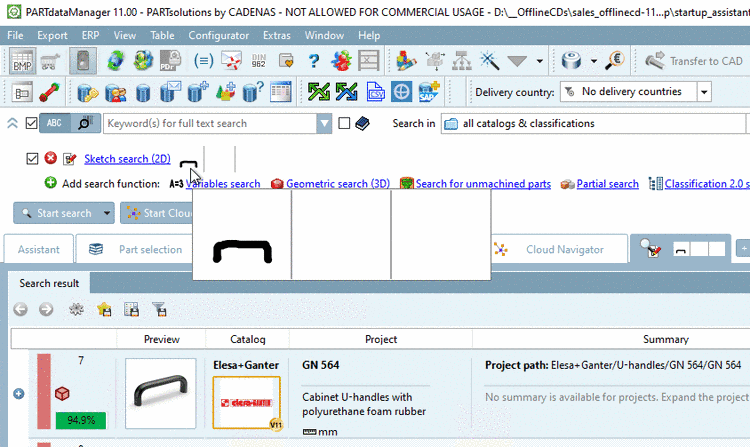

Sketch search (2D)
And even a
single little sketch - not even particularly accurate - is sufficient to
find the desired part.
