1.3.4.12.3.7.  Torus

With this function you can search for internal and external tori.

  • Amount: You can search for a certain number of tori (with or without distinction of internal or external tori; see next point)

  • Orientation: Internal

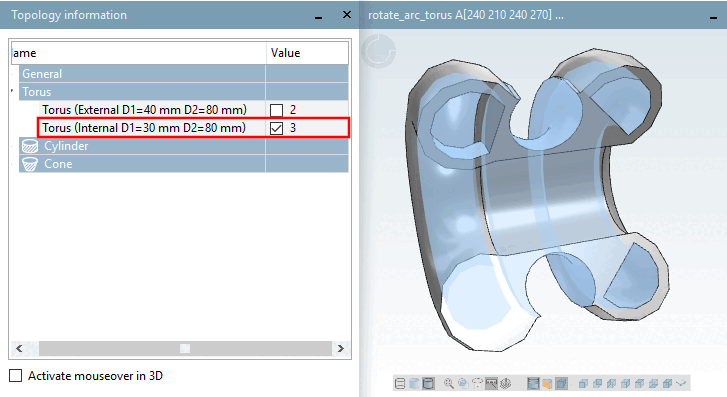

    Example - Part with 3 tori (Internal)

    Example - Part with 3 tori (Internal)

  • Orientation: External

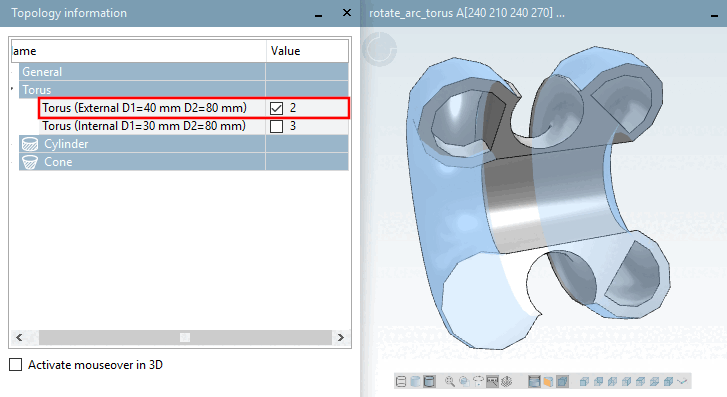

    Example - Part with 2 tori (External)

    Example - Part with 2 tori (External)

  • Minor Diameter: Under Topology information, displayed as parameter D1 (both at Torus External and Torus Internal [compare figures above])

  • Major Diameter: Under Topology information, displayed as parameter D2 (both at Torus External and Torus Internal [compare figures above])

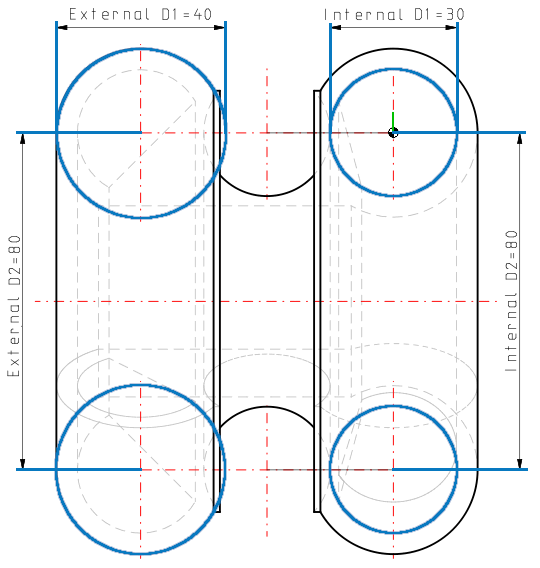

    Example - D2: Major Diameter | D1: Minor Diameter at Torus External and Torus Internal

    Example - D2: Major Diameter | D1: Minor Diameter at Torus External and Torus Internal
