1.3.4.12.3.14.  Linear Slot Pattern

With this function you can search for linear slot patterns.

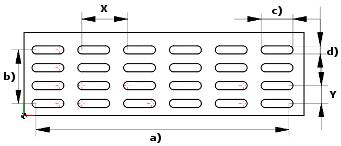

a) Amount Width (here exemplarily 6 elements), b) Amount Height (here exemplarily 4 elements), c) Hole Length, d) Hole Width

a) Amount Width (here exemplarily 6 elements), b) Amount Height (here exemplarily 4 elements), c) Hole Length, d) Hole Width

  • Amount: Amount of patterns in the searched part

  • Amount Width / Amount Height: Number of pattern elements in width and height

    [Note]Note

    In staggered arrangements, the elements of the staggered row are also counted.

    Example: Width = 9 elements, height = 3 elements

    Example: Width = 9 elements, height = 3 elements

    Distance X / Distance Y:

    Distance between two pattern elements in direction of X and Y axis

  • Arrangement

    • Straight

      Arrangement: Straight

      Arrangement: Straight

    • Staggered

      Arrangement: Staggered

      Arrangement: Staggered

      [Note]Note

      For staggered patterns not the absolute distance from hole center to hole center is decisive, but the distance in direction of X and Y axis.

Slotted Hole Attributes

  • Length / Width: Length and width of a single slotted hole (see above)

  • Depth:

    Hole depth

    Hole depth
