3.11.1.6. 3D view -- Boolean comparison operations in realtime

Part comparison -> 3D comparison -> Expert mode on -> Compare geometrically on -> checkbox Live calculation in OpenGL (Not all graphic cards supported) activated

Boolean comparison operations can be calculated in realtime when moving overlaid parts.

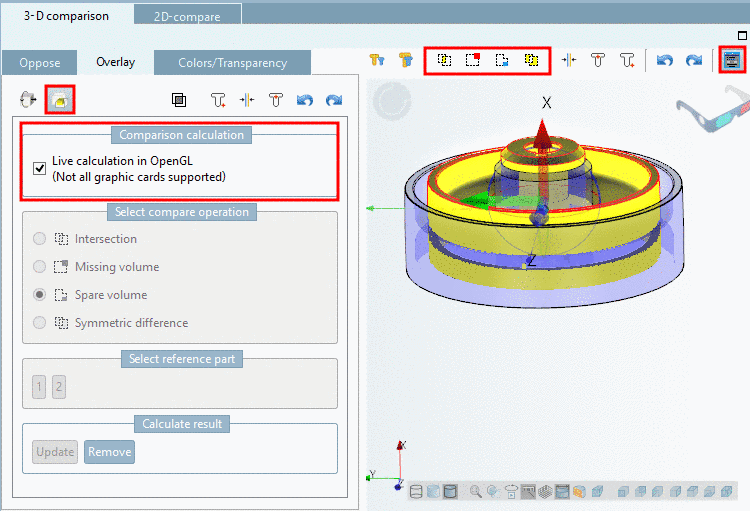

3D comparison

3D comparison
