7.6.2.7.4. More notes

[Note]Note

Please also regard the chapter about the combination of Sweep and Blend!

See Section 7.6.2.10.5.6, “ Combination of Sweep and Blend”.

[Note]Note

Face attributes

As of V11 SP 4 there is the possibility to use face attributes (color and material). However, this function is not downwards compatible.

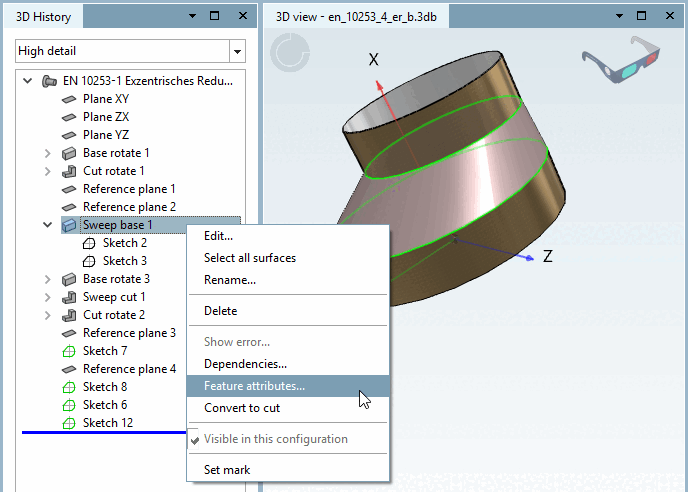

In order to use face attributes, in the context menu of Sweep, use the command Feature attributes....

More details can be found under Section 5.9.2.8.1, “ Render material - Functionality ”.
