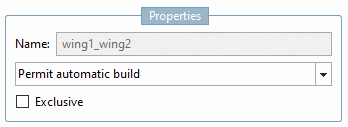

7.13.5.7.1.1.  Properties

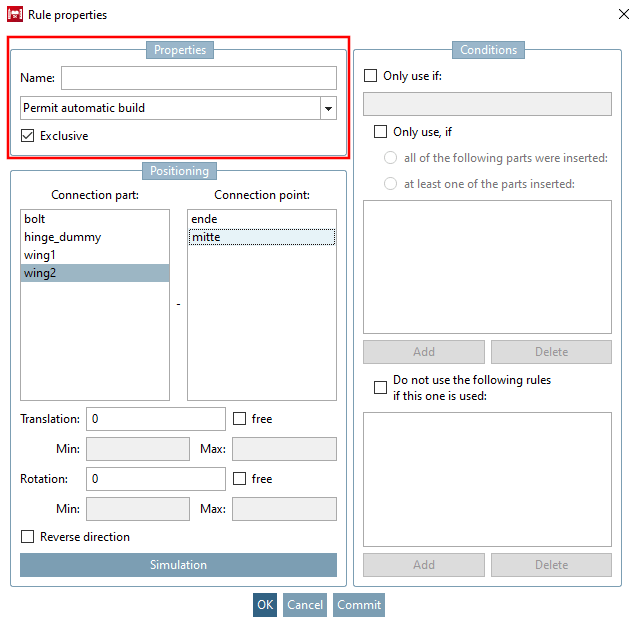

  • Name: The name of a rule has to be unique and cannot be changed anymore after confirmation with OK.

  • List field:

    • Forbid autom. build (X)

      ...excludes the part which is created by this rule from the automatic assembly build through the user.

    • Admit autom. build (U)

      ...includes the part (which is created by this rule) in the automatic assembly build (by user).[107]

    • Always build automatically (V)

      ...includes the part (which is created by this rule) in the automatic assembly build.

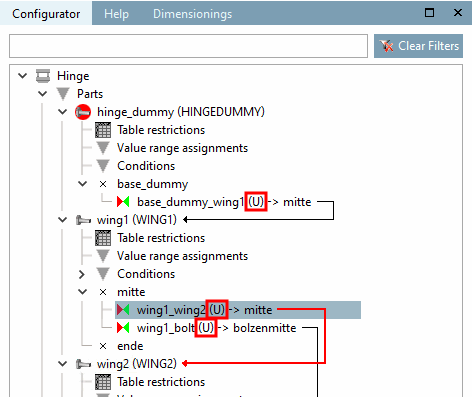

    [Note]Note

    The abbreviation in parentheses in the Configurator indicates the used setting in the list field under Properties.

  • Exclusive: If there are different parts assigned to one connection point you can define a certain part as „exclusive“. Consequence: As soon as this certain part is selected the others (alternatives) are not available anymore.



[107] Information on automatic assembly build in PARTdataManager is found under Section 3.1.19.1.5.4, “ Connect assemblies automatically ” in PARTsolutions - User manual.
