5.12.9.1.  Published elements - Choose connection point

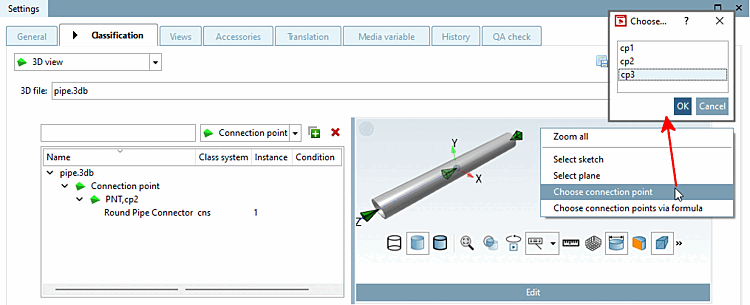

In practice, a variety of classifications is performed via connection points. When clicking on Choose connection point, the same-named dialog is opened.

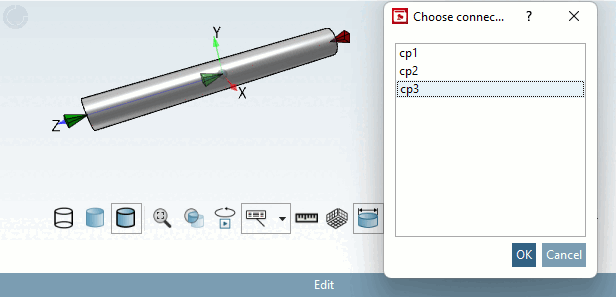

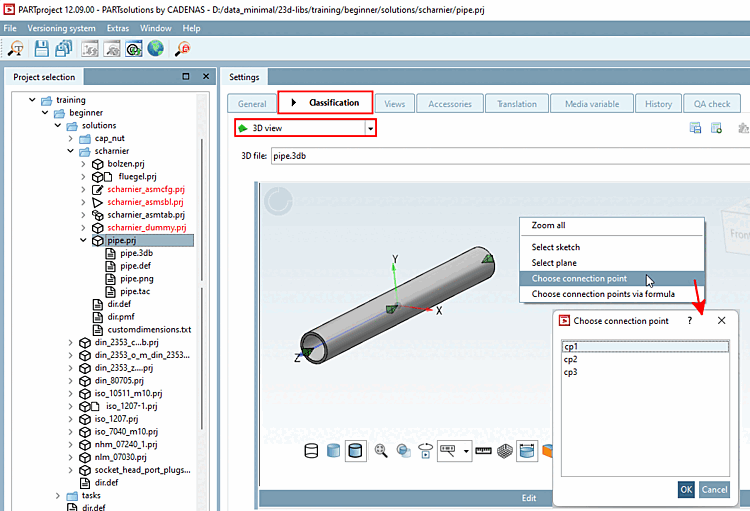

Choose connection point

Choose connection point

[Tip]Tip

When moving the mouse over a connection point, a tooltip with the connection point's name is displayed.

When selecting a connection point in the dialog Choose connection point, it will be highlighted in red in the preview.

You can also perform the selection by directly clicking on the desired connection point. Then the connection point is highlighted in red as well.

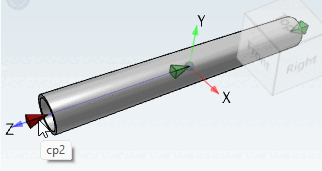

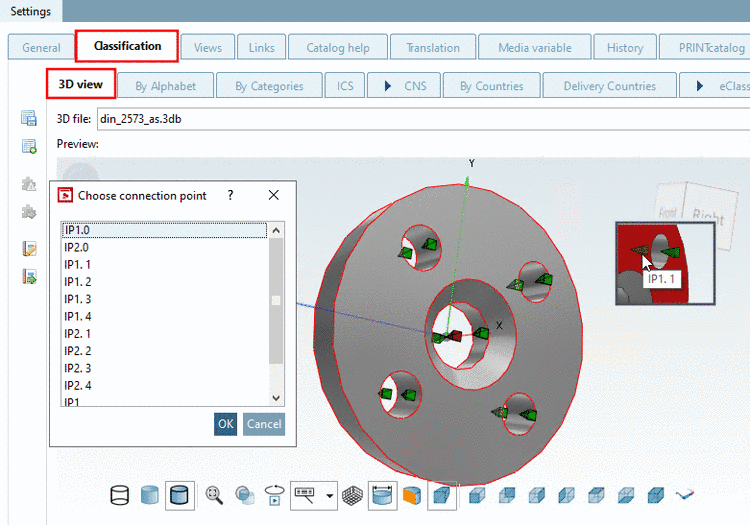

Connection point highlighted in red after selection in dialog and name in tooltip after mouseover

Connection point highlighted in red after selection in dialog and name in tooltip after mouseover

Also see Section 5.12.10, “ Classify standard parts for placement dialog ”.
