2.5.7.2.9. Piping

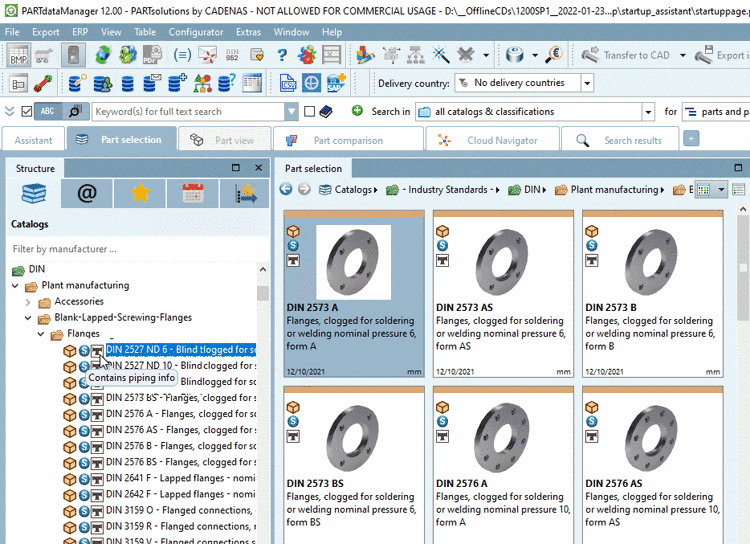

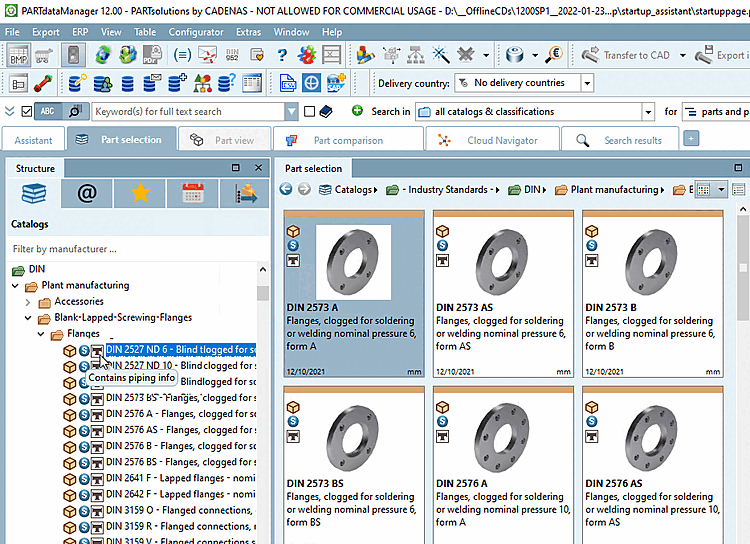

Accordingly classified parts can be used for piping. This can be recognized by the respective Icon.

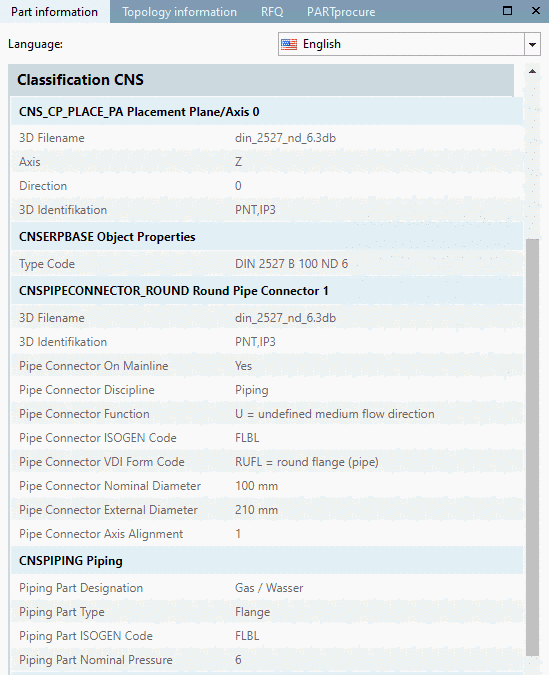

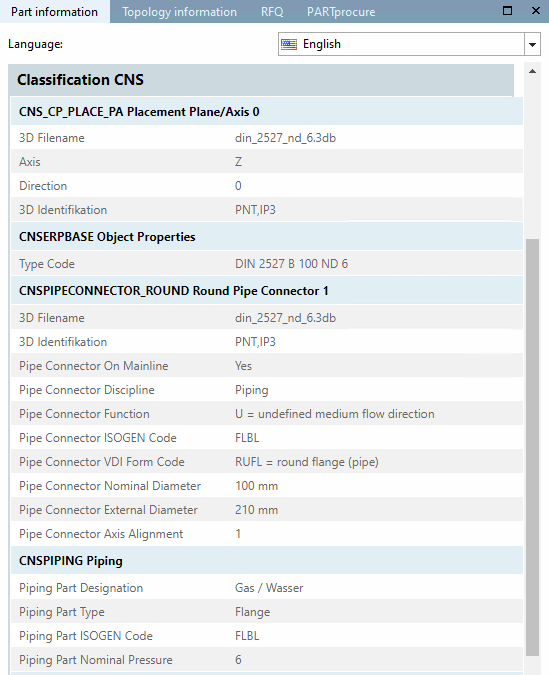

The classification attributes are displayed in the docking window Part information.

Details on the classification process can be found under Section 5.12.14, “Piping Classification ” in eCATALOGsolutions Manual.
