1.7.4.4. Edit datasets in the PARTdataManager

After clicking on the button, the window Edit/delete dataset shows up.

The button is only available with enhanced ERP functionality. It is also role-specific, meaning it may be deactivated for some users. For more info see ???.

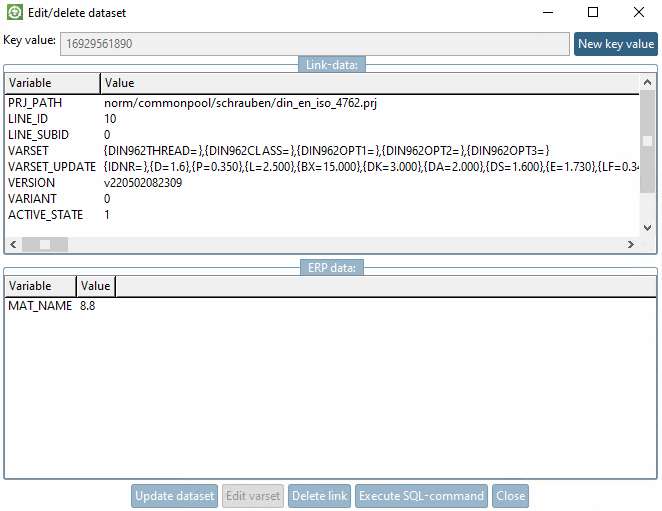

Edit/delete dataset

Edit/delete dataset

  • New key value

    If desired, change the ERP_PDM_NUMBER.

    [Note]Note

    An assigned number should generally not be changed.

The data display is divided into Link-data and ERP data.

  • Update dataset

    Click on the value to be changed.

    The entry field opens.

    Change the value accordingly and click on Update dataset.

  • Edit varset

    If you are dealing with a variant in the marked row, you can change the geometry value, otherwise a message shows up.

    1. Click on Edit varset.

      --> The dialog window opens

    2. Change the desired value.

    3. Then click on Update dataset.

  • Delete link

    Deletes the data in the LINKTABLE.

    This is followed by a query whether or not the data should be kept in the ERPTABLE. Reply accordingly.

  • Execute SQL-command

    Opens the same named window.

    In the SQL command entry area you can set any command.

    Define the maximum number of rows in the result.

    Click on Execute.

    [Note]Note

    Via browse button ... you can have the table names and a selection of SQL commands displayed.

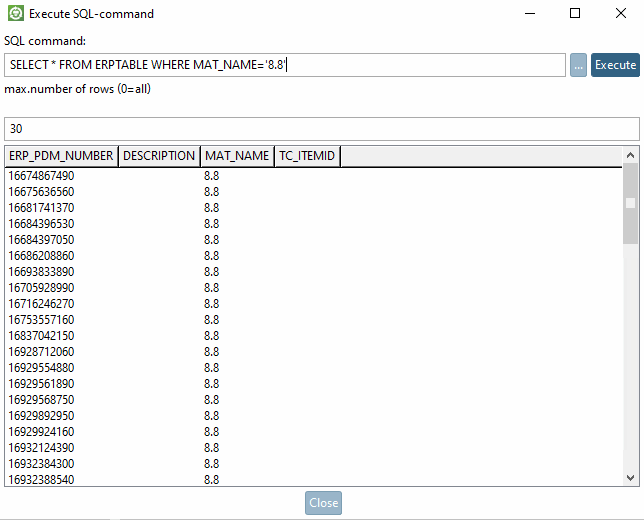

    Execute SQL-command

    Execute SQL-command

  • Close
