5.12.14.1.1. Class "CNSPIPING"

In the class CNSPIPING, following features are available:

Class "CNSPIPING"

Class "CNSPIPING"

  • Piping Part Designation: Usage category (e.g. gas / water / fire protection)

  • Piping Part Type: Component shape description

    • Inline valve/part: Straight valve/part

    • Inline_Reducing: Reducer

    • Coupling/fitting

    • Flange

    • Gasket

    • 90° corner

    • 90° corner with reducing

    • 90° corner with welded outlet

    • Elbow

    • T-piece

    • T-piece with reducing

    • T-piece with welded outlet

    • Mounting

  • Piping Part ISOGEN CODE: ISOGEN code for the part - 4 characters

  • Piping Part Nominal Pressure [Pa]

  • Piping Part Max Peak Pressure [Pa]

  • Piping Part Min Peak Pressure [Pa]

  • Piping Part Max Permanent Pressure [Pa]

  • Piping Part Min Permanent Temperature [Celsius]

  • Piping Part Max Permanent Temperature [Celsius]

  • Piping Part Pressure Drop [Pa]

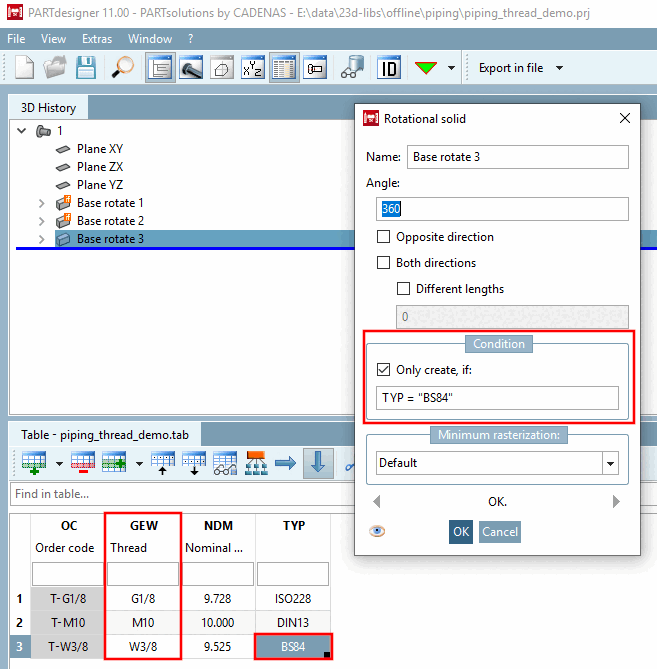

  • Piping Part Nominal Thread Size: When stating the corresponding table variable, the feature can be controlled by line (see for example Fig. „Class "CNSPIPING"“ "GEW").

    In the characteristic attribute table the thread type is controlled via conditions.

    In the characteristic attribute table the thread type is controlled via conditions.
