2.1.1.4.1. Support for multiport terminals

As of V11 SP12 NX Routing Electrical supports grouping of multiple terminals (pins) of a singe multiport.

When Electrical Routing is enabled, the interface will check the CNS_CON_GR connection point attribute and group Ports sharing the same value of this attribute.

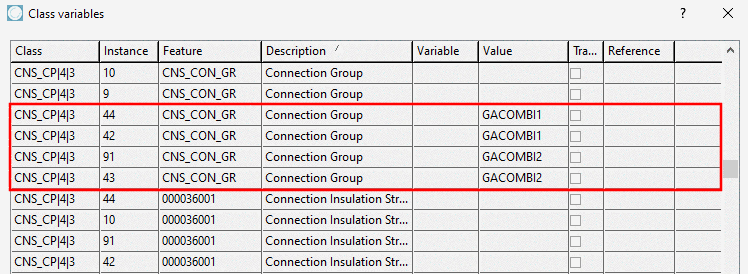

PARTproject -> Class variables

PARTproject -> Class variables

NX: Exported part with multiports

NX: Exported part with multiports

Details can be found under Section 5.12.12.20, “NX: Routing Electrical ” in eCATALOGsolutions Manual.
