4.7.1.  ERP environment - Overview

When setting up the ERP environment in the subcategory Database connection, the connection to LinkDB is set, in category Rights administration the mapping of Users/groups to Role sets and in category Role sets the mapping to Roles.

When all settings are consistently available, user/groups authenticate themselves and access the LinkDB.

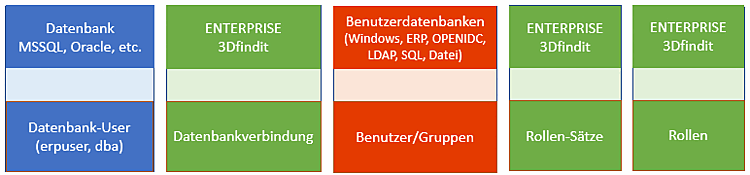

Overview diagram

Overview diagram

Category "Database connection"

Category "Database connection"

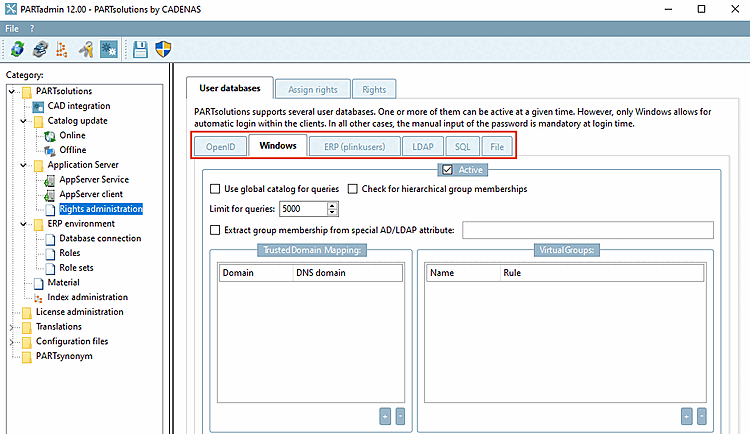

Category "Rights administration" -> "User databases"

Category "Rights administration" -> "User databases"

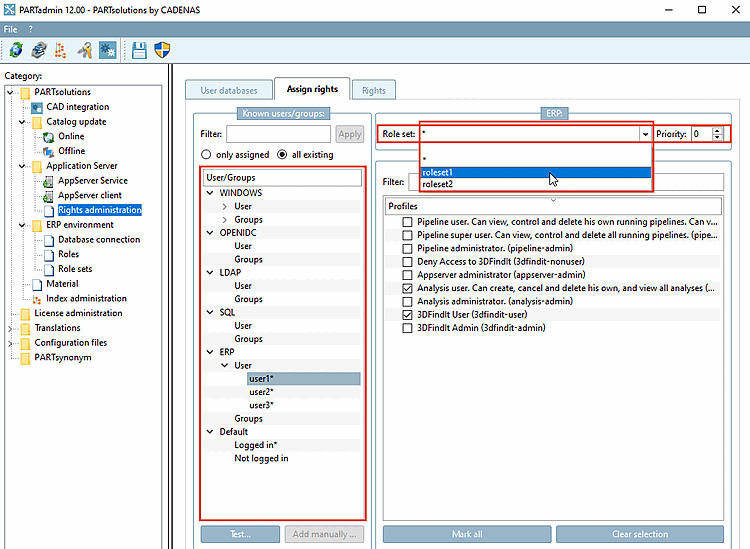

Category "Rights administration" -> "Assign rights"

Category "Rights administration" -> "Assign rights"

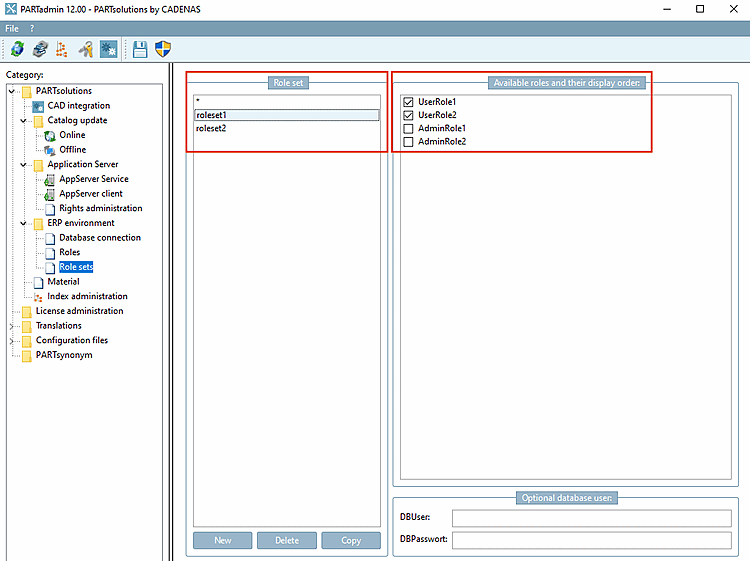

Category "Role sets"

Category "Role sets"

Category "Role sets"

Category "Role sets"

Single steps of setup

In the following the most important single steps for the creation of the role concept are described:

  1. Create Database user via SQL Scripting in LinkDB. See Section 4.2.4, “Create database scheme and users for ERP (exemplified by MSSQL)”.

  2. Setup and testing of database connection in category Database connection.

    See following section "Database connection".

  3. Activation of the desired User databases (one or multiple)

    (If needed creation of PARTsolutions ERP users)

    See Section 1.3.9.9.1.2, “Tabbed page "User databases" ”

  4. Mapping of Users/groups to Role sets

    See Section 1.3.9.9.1.3, “Tabbed page "Assign rights" ”

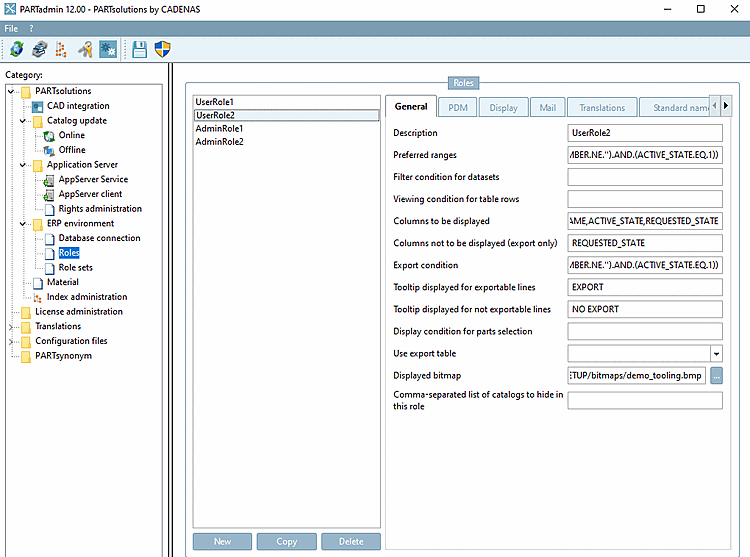

  5. Creation and configuration of Roles in category Roles

    See Section 4.7.3, “ Create and configure roles ”.
