Before projects are published, a QA check is performed in many ways.
The call happens in PARTproject, under Project selection, in the context menu of projects (Test project) or directories (Test directory).
-> The dialog box QA Check Settings with the tabbed pages General, Tests, Output and Plugins is opened.
As of V12 SP2 the plugins BIMtest and QAchecker have been added (integrated).
With the new plugin BIMtest different requirements for the BIM field can be tested.
Activate the dialog area and then the desired options.
When using the QAchecker certain aspects such as table, classification, translation, for example, can be checked.
Activate the QAchecker and then the desired options.
The function writes an Excel file where the respective results are stored. The path statement for this is made under Report. For each individual activated point, a table is created.

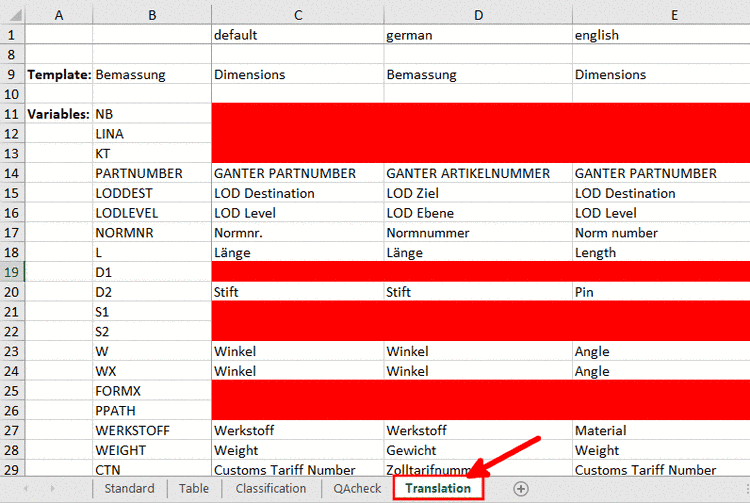

When using the option Translation, you can make a restriction to certain variables in the dialog area Variables selection optionally. Disable ALL_VARS and set the desired variables via Plus sign .
Now the table Translation only shows the manually created in the Variables section.
