4.16.3.3.2.  Correct version numbers

The command Correct version numbers is normally not needed, but only for error correction.

Should there be a difference between version number in the project file (verhist.cfg ) and in the LinkDB (column Version), the project cannot be displayed in PARTdataManager.

This could possibly happen by deleting and new installation of a catalog.

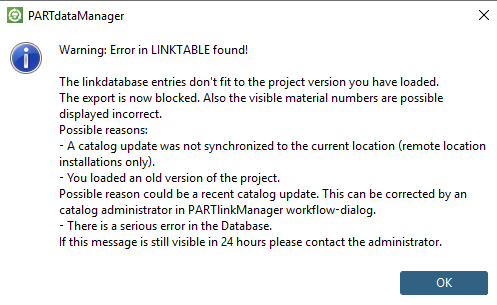

In PARTdataManager the following error message appears:

In order to correct the error do the following:

  1. Start PARTlinkManager either from the Start menu or from PARTdataManager.

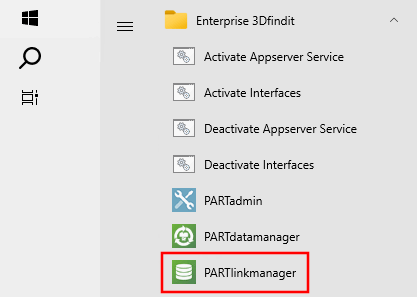

    Start menu PARTlinkmanager

    Start menu PARTlinkmanager

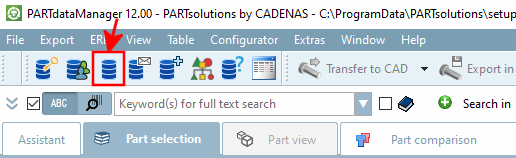

    PARTdataManager -> Launch PARTlinkManager

    PARTdataManager -> Launch PARTlinkManager

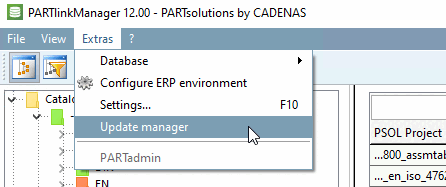

  2. Start the Update manager via Extras menu.

    Call Update manager

    Call Update manager

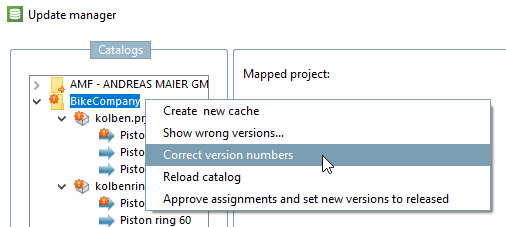

  3. Click on the context menu command Correct version numbers.

    -> Respective LinkDB entries are corrected.

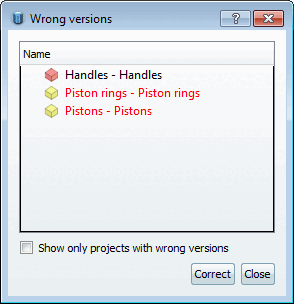

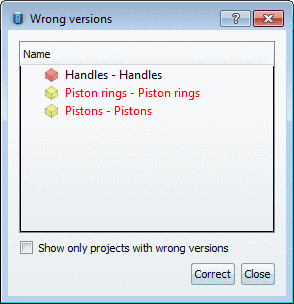

After executing the command the dialog box Wrong versions is displayed.

[Note]Note

Wrong versions are listed in red color. All other list items carry no weight. You can hide them by activating the checkbox Show only projects with wrong versions.

Select the project to be corrected and click on Correct.

During the correction also variables which have possibly changed and the MIdent are adjusted. Edited lines are applied again in the LinkDB with correct version number. In the column ACTIVE_STATE the value "Locked" is set.
