3.5.4.6.  Correction of the direction of the BIM connection points

[Note]Note

Please note that connection points should not be marked via Revit classification -> Revit family template mapping (RVT_CP) anymore, but via CNS classification -> Placement Coordinatesystem (CNS_CP).

With the function Correction of the direction of the BIM connection points, you can change the orientation of Revit connection points (only 180°).

Precondition: Under \libs\all\plugins, the files cpcorrect.cfg, cpcorrect.def and cpcorrect.vbb have to be available.

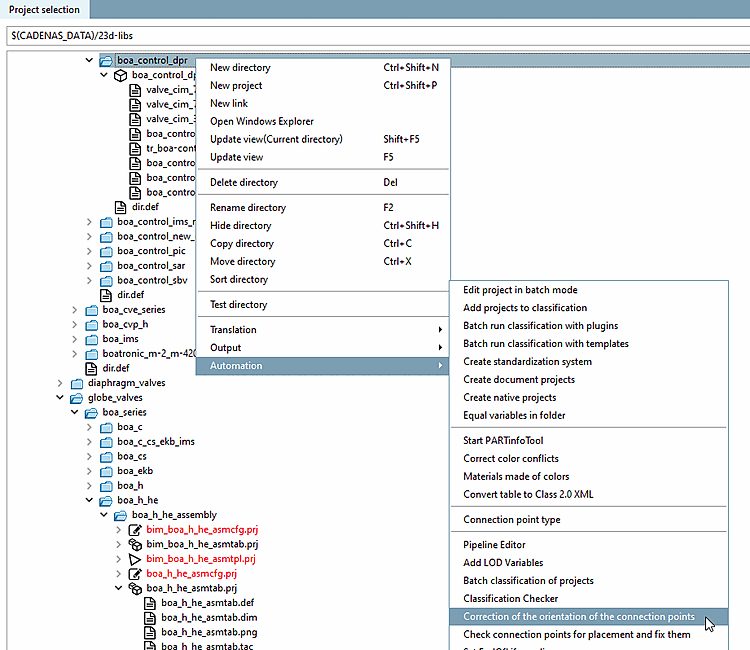

  1. Call the function on any catalog directory.

    Dialog box "Correction of the direction of the BIM connection points"

    Dialog box "Correction of the direction of the BIM connection points"

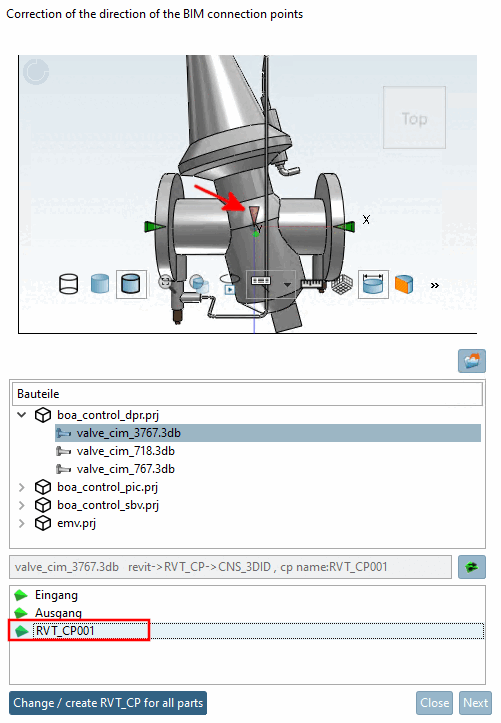

  2. The found parts are listed and the detected Revit connection point is already selected.

    Dialog box "Correction of the direction of the BIM connection points"

    Dialog box "Correction of the direction of the BIM connection points"

  3. Check the connection point's orientation.

    If needed, you can change the orientation of the red marked connection point by clicking on the icon Reverse connection point direction with 180°.

  4. For saving, click on the button Change / create RVT_CP for all parts.
