2.10.1. Create preview images in batch run

You can create preview images (e.g. for the index tree) in an automated process:

[Note]Note

PARTdataManager has to be installed.

Before starting, update the Display index. Hereto in PARTproject, click on the respective toolbar icon .

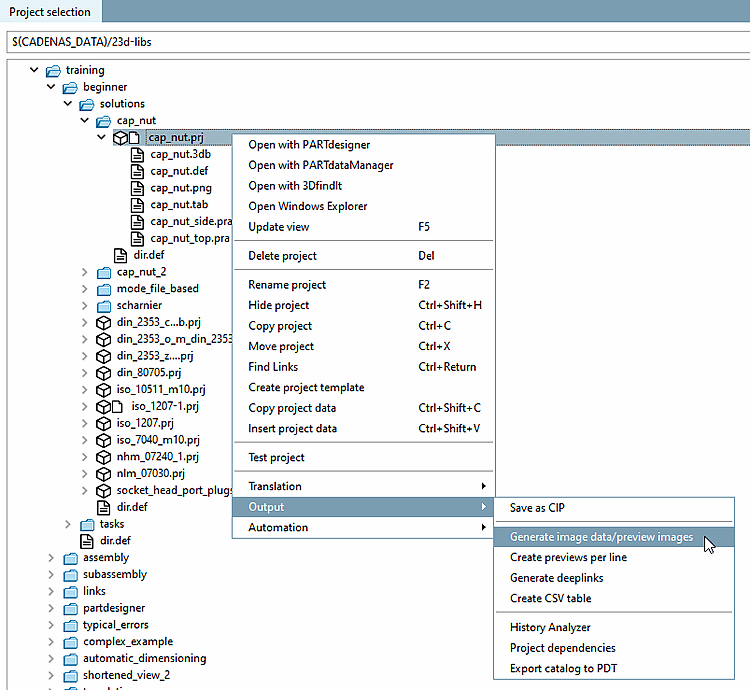

  1. In PARTproject, in the context menu of a project or directory, click on Generate image data/preview images.

    -> The dialog box Export images is opened.

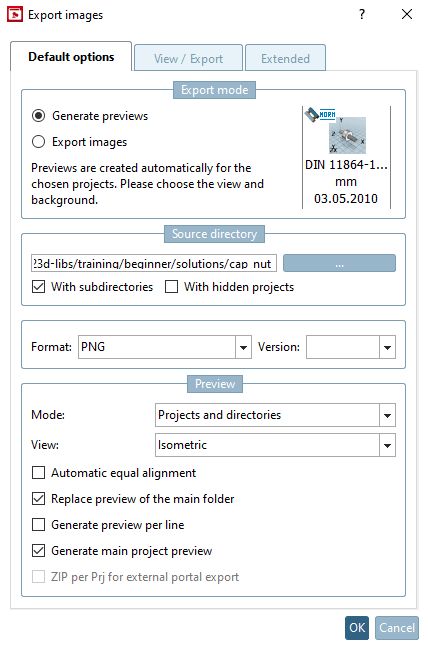

    Export im PNG-Format

    Export im PNG-Format

  2. There, choose the option Generate previews.

    You can leave the default settings.

  3. Click OK.

    Details on the creation of preview images can be found under Section 5.8.2.1.14.3, “ Generate image data/preview images with batch run ” in eCATALOGsolutions Manual.

  4. In PARTproject, in the context menu of the desired project, click on Open with PARTdataManager.

    -> Now the preview images are displayed in PARTdataManager.

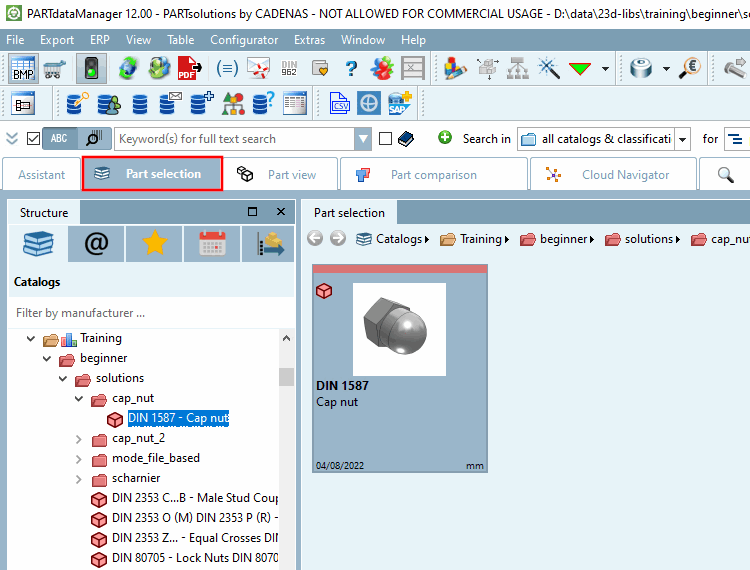

    Preview images in PARTdataManager

    Preview images in PARTdataManager
