2.3.9.  SolidWorks Integration - Administration

2.3.9.1. Block [CreationOptions(is3d)]
2.3.9.1.1. Key "poolpath" - Set storage path for PARTsolutions parts
2.3.9.1.2. Key "FileName" - Define structure of document name
2.3.9.1.3. Key "Material" - Material mapping
2.3.9.1.4. Key "sketchmode"
2.3.9.2. Block [UI] - Adjust menus and toolbars
2.3.9.3. Attribute mapping in SolidWorks
2.3.9.3.1. Block [AttributeMapping(3D)] - Set attribute language
2.3.9.3.1.1. Declare prefix for PARTsolutions attributes
2.3.9.3.2. Block [CadDocumentAttributes] - Transfer custom attributes
2.3.9.3.2.1. Key "IsFastener"
2.3.9.3.3. Block [CadDocumentAttributes] - Transfer further extra attributes
2.3.9.3.4. Block [SummaryInformation]
2.3.9.4. Several SolidWorks versions in parallel operation
2.3.9.5. Troubleshooting
2.3.9.5.1. Installation - Deinstallation
2.3.9.6. User documentation

In the configuration file ifsolidworks.cfg, you can find all settings for the SolidWorks integration.

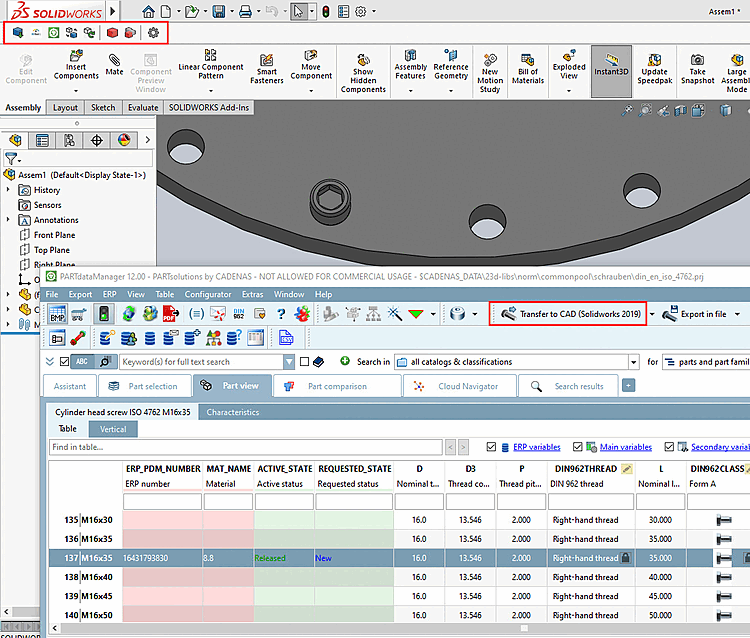

Export part from PARTdataManager using "Insert model"

Export part from PARTdataManager using "Insert model"

The most important information is found in the single blocks and keys, in the configuration file itself.

In the following you can find more comprehensive information on some blocks and keys.

Syntax and essential concepts are found under Section 2.2, “CAD encompassing information ”.

[Note]Note

Changes at configuration files should only be performed by experienced users or CADENAS Consultants.
