1.6.1.3.2.19.  Sketcher: Circle tangent to 3 circles

With V12 the tool Circle tangent to 3 circles has been added (only for demo purposes, not released).

Circle tangent within 3 original circles

Circle tangent within 3 original circles

  1. Enable the tool Circle tangent to 3 circles.

  2. Select the original circles one after another.

    -> The new circle is inserted tangent to the 3 original circles.

In the docking window Edit element you can put one, two or all three original circles into the tangent circle.

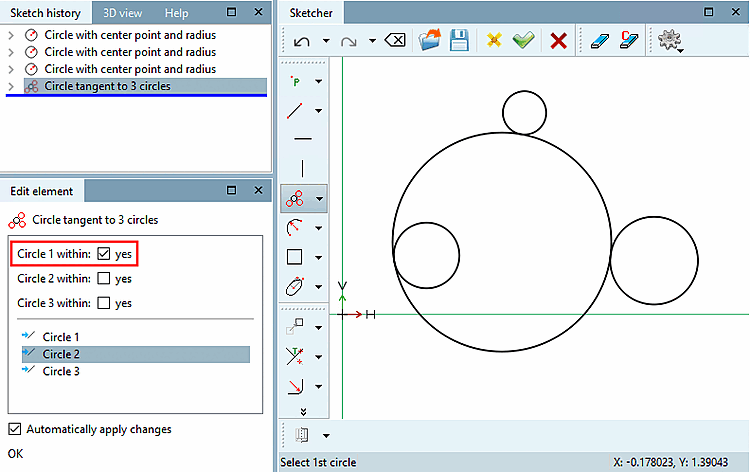

Example: Circle 1 inside the tangent circle

Example: Circle 1 inside the tangent circle

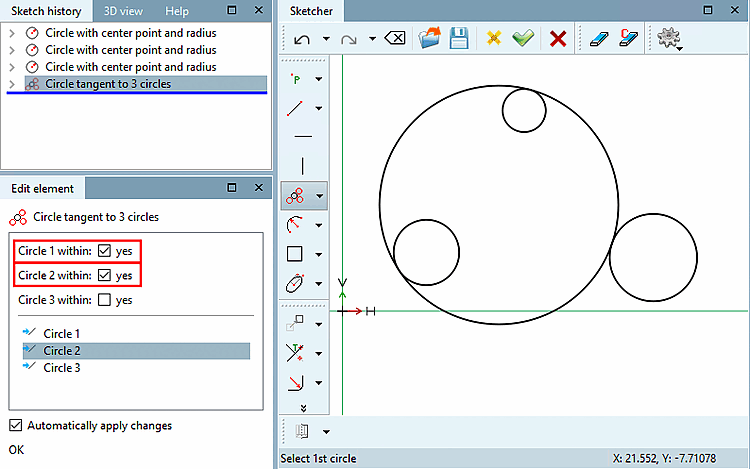

Example: Circle 1 and 2 inside the tangent circle

Example: Circle 1 and 2 inside the tangent circle

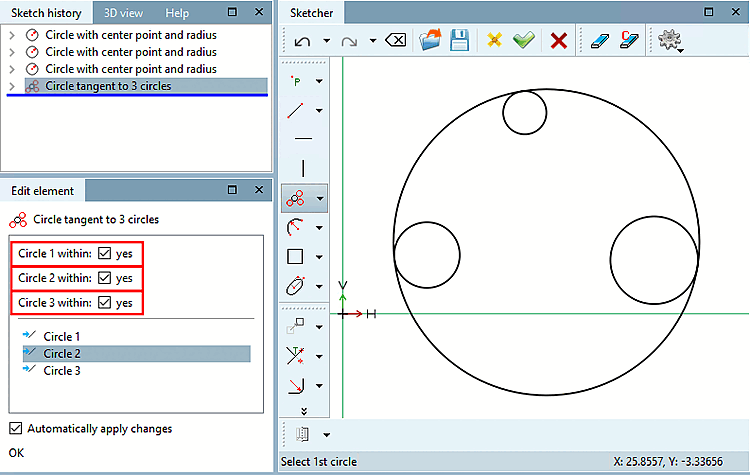

Example: Circle 1, 2 and 3 inside the tangent circle

Example: Circle 1, 2 and 3 inside the tangent circle
