5.9.5. Assign 2D
derivation in PARTproject
In PARTproject -> tabbed
page Views ->
dialog area
2D derivation, the required assignments are
performed.
Under
View, select a standard view, if you want
to replace it by a modified view
or
enter a view
created by yourself with free text input, if you want to add
it.
![[Note]](https://webapi.partcommunity.com/service/help/latest/pages/it/installation_ecatalogsolutions/doc/images/note.png) | Note |
|---|
If the
drawing is saved internally inside the 3D model, you have to use
exactly the name defined before. |
Under
2D model, select
From 3db
file, if you created an internally saved 2D
drawing.
a model
created by you in the sketcher, which you saved in the project
directory.
It will
be displayed in the list field, if available in the project
directory as 2db file (in above figure exemplarily
"senkkopf.2db)
Choose
Add or Replace or Overlay:
Add
Only
possible, if you selected a self created view!
Replace
Only
possible, if you selected a standard view. The respective standard
view is overwritten.

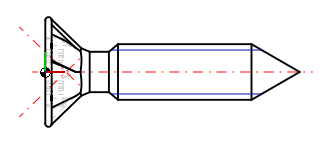

Overlay
Via
overlay, extra details from a 2db file can be included in a
standard 2D derivation.

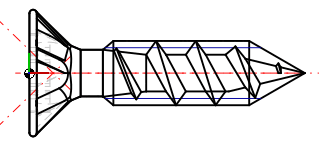

The
third figure exemplarily shows an overlay from 2D derivation and
extra 2db file.
