3.1.6.4.6.4.  Settings

In the following the setting options of the dialog box Geometric search (3D) are explained in detail:

  • Search template:

    • Standard search : Medium quality and speed

      Default search template for the 3D search which uses a lot of different algorithms.

      [Tip]Tip

      Normally you should use the Standard search.

    • Broad search : Less speed

    • Search for profiles :

    • Duplicate search:

    [Note]Note

    For the creation of own search templates or special adjustments please only contact CADENAS Consulting, if needed.

  • Size-dependent search :

    Search either only shape-dependent (checkbox off) or size-dependent in addition (checkbox on).

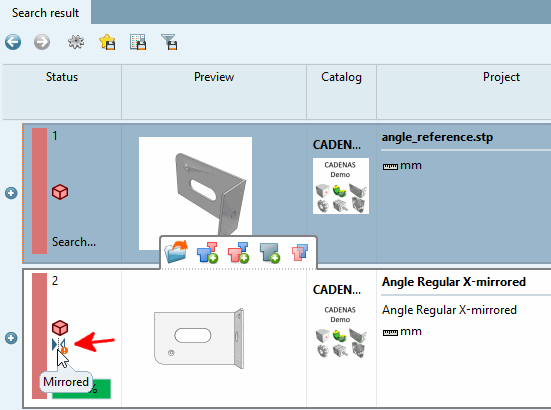

  • Filter mirrored parts: When enabling this option, mirrored parts are filtered. In the list of search results, mirrored parts are marked with an icon .

    Option disabled: Mirrored parts are not filtered, but marked with an icon.

    Option disabled: Mirrored parts are not filtered, but marked with an icon.
