5.12.11.1. Connection points at threaded connections

With the aid of the following figures you will get all important information on different types of threaded connections.

Screws:

Cylinder head screw

Cylinder head screw

Connection points:

IP 2: Top side of screw head
IP 1: Contact face of screw head
IP 3: Screw end

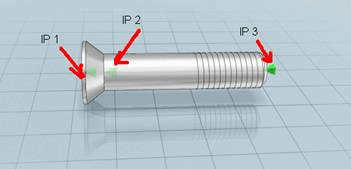

Countersunk screw

Countersunk screw

Connection points:

IP 1: Top side of screw head
IP 2: Bottom side of screw head
IP 3: Screw end

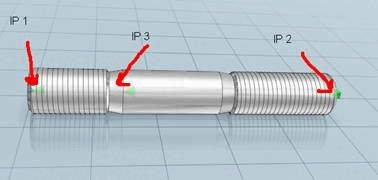

Stud screw

Stud screw

Connection points:

IP 1: Top side
IP 2: Bottom side
IP 3: End of screw-in thread

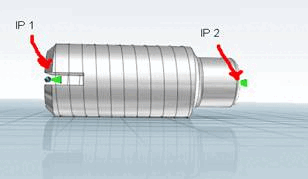

Threaded pin

Threaded pin

Connection points:

IP 1: Top side
IP 2: Bottom side

Nuts

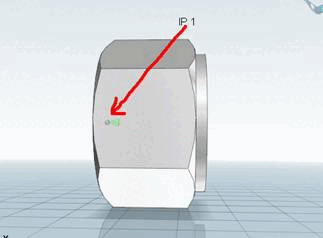

Nut

Connection point:

IP 1: Contact face

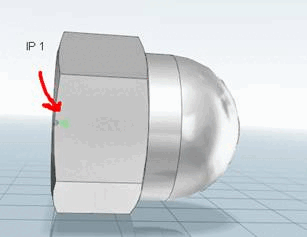

Cap nut

Connection point:

IP 1: Contact face
Washers / Rings
Washer

Connection points:

IP 1: Top side
IP 2: Bottom side

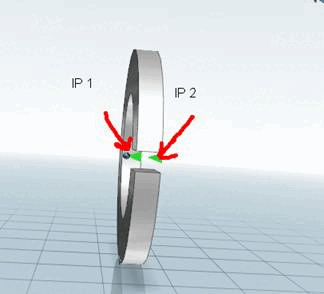

Ring

Connection points:

IP 1: Top side
IP 2: Bottom side

Holes

Through-hole with thread

Through-hole with thread

Connection points:

IP 1: Material top side
IP 3: Material bottom side

Blind hole with thread

Blind hole with thread

Connection points:

IP 1: Material top side
IP 2: Material bottom side
IP 3: Thread end

Through-hole with counterbore, flat resting

Through-hole with counterbore, flat resting

Connection points:

IP 1: Top surface of material
IP 2: Counterbore contact face
IP 3: Material bottom side

Through-hole for countersunk screw

Through-hole for countersunk screw

Connection points:

IP 1: Material top side
IP 2: Counterbore end
IP 3: Material bottom side

Through-hole

Through-hole

Connection points:

IP 1: Material top side
IP 3: Material bottom side
