7.9.4.  Sketch history

  • All design steps are chronologically recorded in the docking window Sketch history. The most recent step is at the bottom.

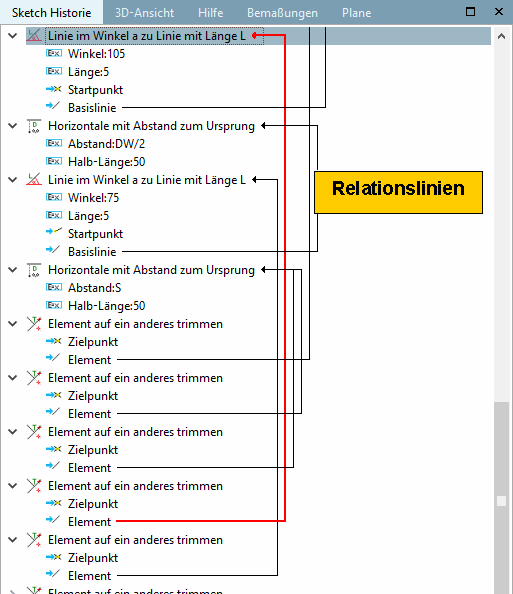

  • Relations between design steps are symbolized by Relation lines.

  • You can edit the Sketch history. That means, for example, you can delete needless steps.

  • With the help of a movable marking (time line) (per default at the bottom of the tree) you can always return to a previous design step.

    The line can be moved once the double arrow symbol is shown as cursor.

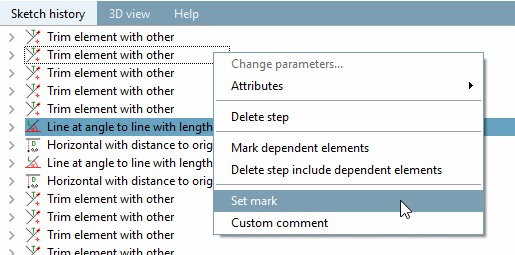

    You can also move the line via context menu command: For this, mark the last feature to be displayed and click on Set mark.

  • In the docking window Sketch history you can find main and subordinated features.

    • Main features are created through function buttons, such as Rectangle (point, width and height), for example.

    • A subordinated feature contains details on the main feature such as Width or Height, for example.
