1.6.1.3.2.3.  3D History: Create pipe... (Piping)

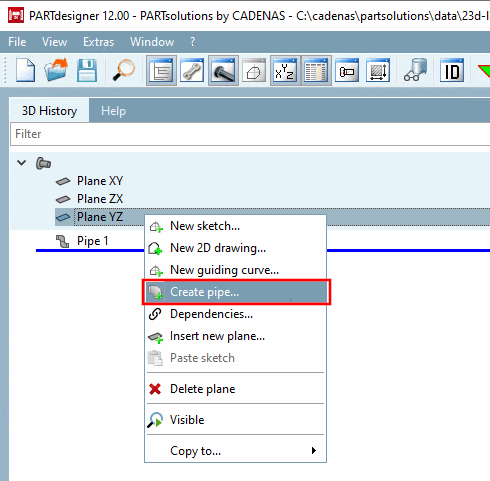

The function Create pipe... enables the creation of complex piping systems in plant engineering and heating/climate engineering.

Benefits:

  • Significant reduction of modeling effort

  • Comfortable user interface which enables to build up modular constructions step by step very easy.

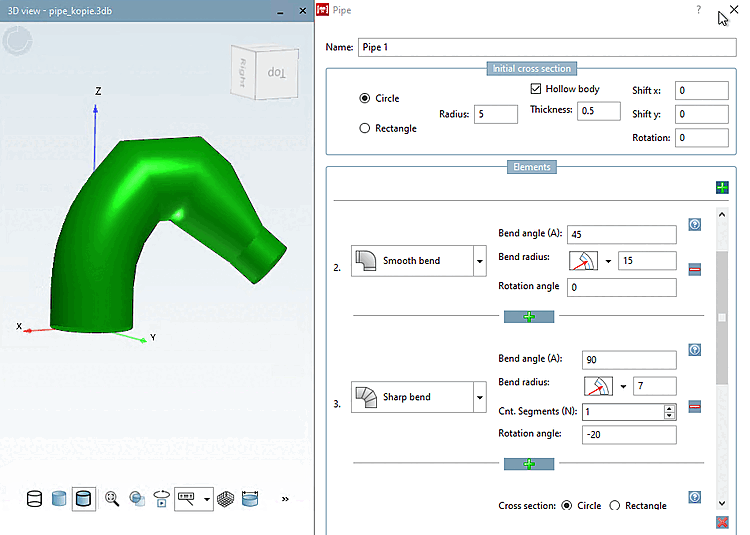

    The figure shows a pipe run assembled from several elements. The 3D live preview shows the current state.

    The figure shows a pipe run assembled from several elements. The 3D live preview shows the current state.

  • Live preview

  • Simple adding of pipes to already existing

  • Display of technical drawings which help to fill the single input fields

    The figure shows the help which is available for each element.

    The figure shows the help which is available for each element.

  • Backwards compatibility to versions without Piping Tool

Details can be found under Section 7.6.2.9, “ Pipe ” in eCATALOGsolutions Manual.
