5.12.3.2.3.  Classification (By Countries)

The functionality described in the following enables a manual adding of address data.

Editing a bigger amount of manufacturer address data directly in PARTproject is hard. Better use the function Import address information. See Section 5.8.2.1.15.26, “ Manage address data ”.

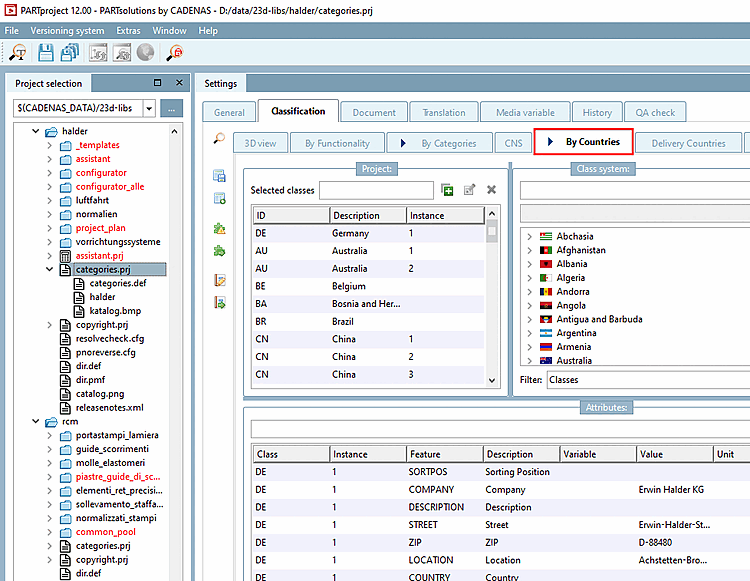

  1. Select the categories.prj in the catalog root folder or may be a project file, if the product is only available in specific countries.

  2. Select the tab Classification.

  3. Select the classification By Countries.

  4. Under Class system, select the required classes (countries).

    Classification (By Categories)

    Classification (By Categories)

    [Note]Note

    If a country has multiple addresses, absolutely enter the Instance with consecutive number.

  5. In the dialog area Attributes, fill out the individual attributes.
