3.1.15.5.  Configuration mode

With an activated Configuration mode the menu points in the Configurator menu are active, otherwise they are grayed out.

New assembly configurations (systems of rules) can be composed within the PARTdataManager. (The creation of a new project happens in PARTproject.)

In order to display the structure of an already created assembly proceed as follows:

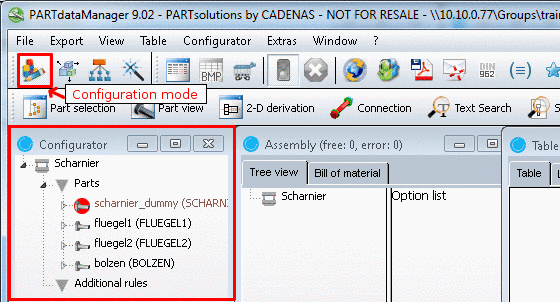

  1. Activate the configuration mode by clicking on the button Configuration mode .

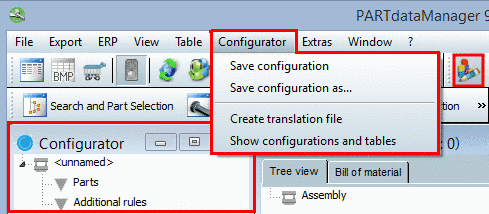

  2. In the menu Configurator, click on the command Show configurations and tables.

Configuration mode

Configuration mode

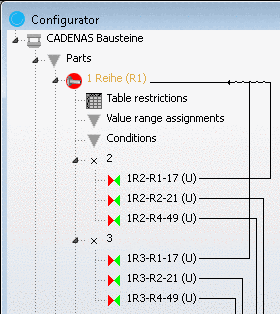

In the structure tree of this dialog area, you can determine all relationships and connections that are required for the construction of an assembly.

The procedure in this mode is explained under Chapter 9, Configurator in eCATALOGsolutions Manual.
