7.15.5. Annotation

7.15.5.1. Mandatory parameters
7.15.5.2. Optional parameters

Type: ANNOTATION

Using this type you can place an annotation at a certain point.

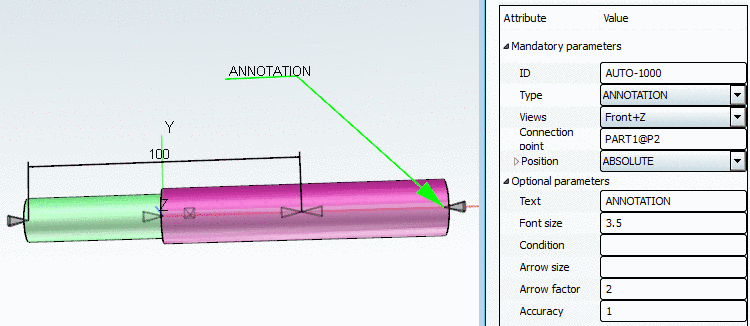

The arrow is drawn to the specified connection point. The bottom left position of the annotation is specified via "Position" in relation to the zero point of the coordinate system.

The arrow is drawn to the specified connection point. The bottom left position of the annotation is specified via "Position" in relation to the zero point of the coordinate system.

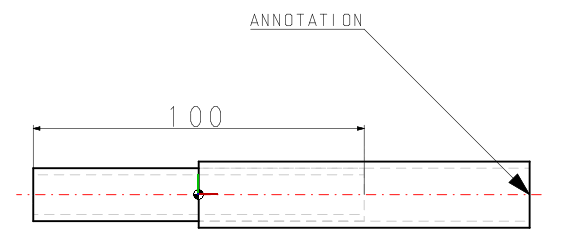

Annotation in 2D derivation

Annotation in 2D derivation
