7.18.3.  Physical properties of the part

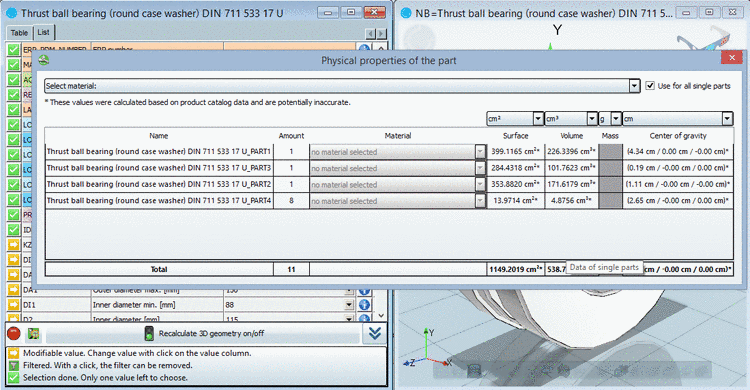

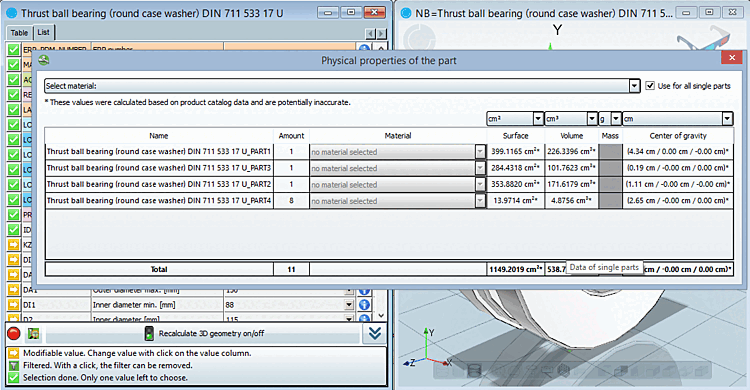

  • Via this command you can see physical data of the selected part and calculate volume and center of gravity.

  • Via list fields of Surface, Volume, Weight and Center of gravity, you can set the desired Unit.

  • Material:

    • Either use the list field at the top

      or

    • enable the checkbox Use for all single parts and in the respective list fields of the single parts, assign the material for each separately.

[Note]Note

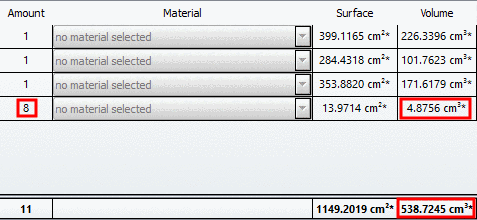

In the line of single parts, the end result considers the number of parts.
