5.12.12.2. Classification according to IEC Code 81346_2

Classifying according to EN 81346-2 is mandatory.

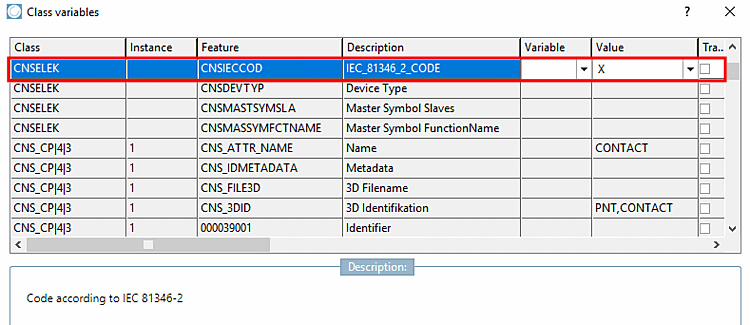

Under Class CNSELEK -> Attribute CNSIECCOD with Description IEC_81346_2_CODE, set respective value.

In EN 81346-2, the code letter of main classes for purpose and task of objects is determined. For details see https://de.wikipedia.org/wiki/EN_81346 -> EN 81346-2: Classification of objects and code of classes (IEC 81346-2:2009)

Excerpt from the table of main classes (A1):

Code letter Purpose or task
ATwo or several purposes or tasks (Note: This class is only intended for objects without main purpose)
BChange signal variable (physical property, state or result) in a signal for processing
CStorage of material, energy or information
......
XObject connection

Examples:

Cable = W | Connector = X | Terminal = X | Display = P

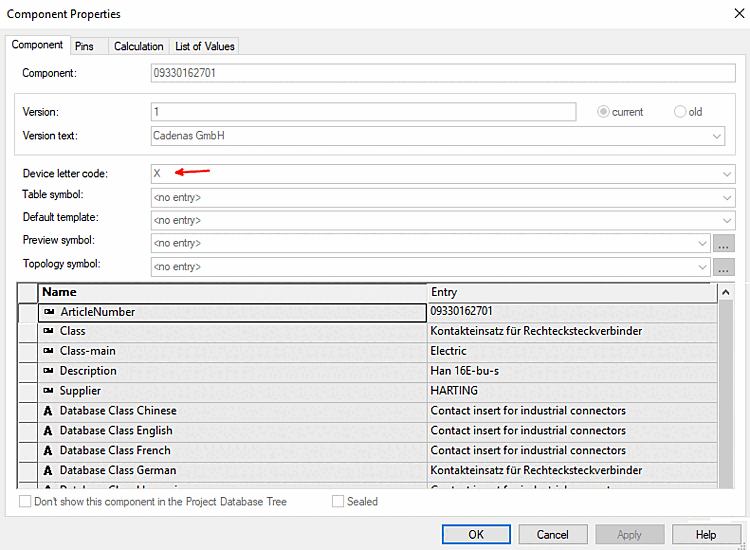

Result in E3

Component Properties - Device letter code and other properties

Component Properties - Device letter code and other properties
