Name:

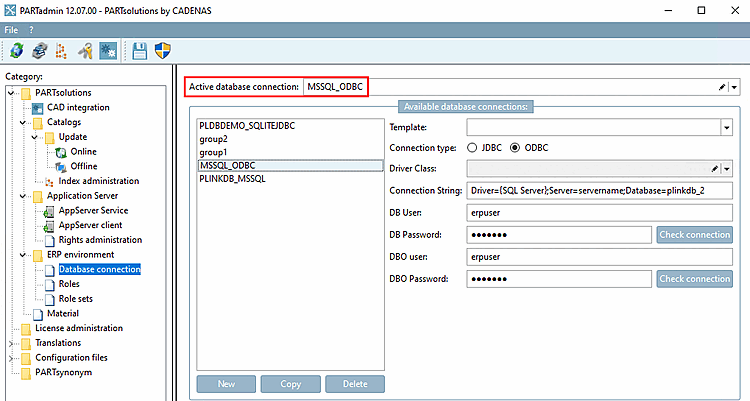

At this place that name has to be entered, which had been used for setting up the ODBC interface (see following figure).

MSSQL ODBC

In a standard installation the already entered name is correct. Otherwise please adjust accordingly.

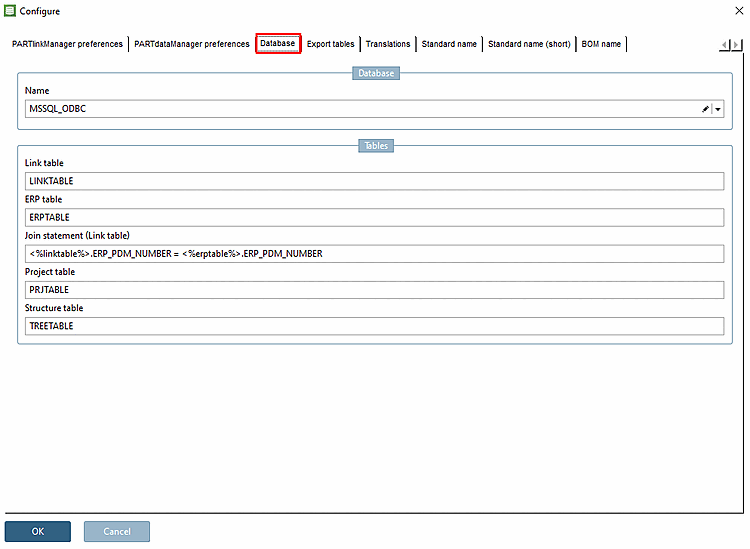

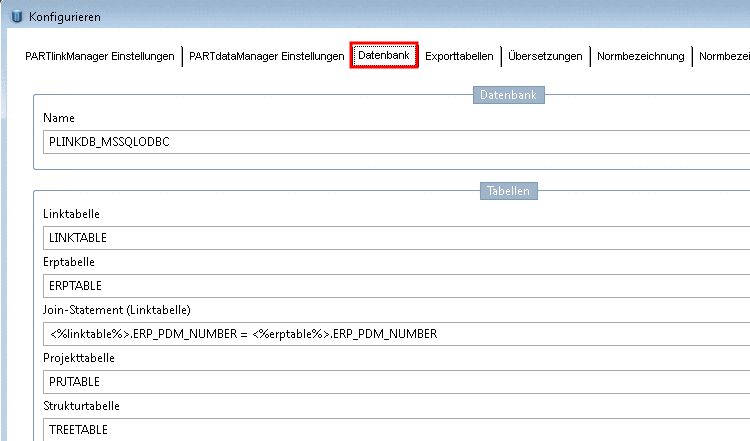

Link table

ERP table

Join statement (link table)

Join statement defines, which primary key is assigned to which foreign key in the LINKTABLE and ERPTABLE. In this case „erp_pdm_number“.

Project table

PRJTABLE is used for the function Edit project table (see Section 4.25.7.7, “ Edit project table ”).

Structure table

The TREETABLE is needed in order to display the red-green status in the directory tree. As of V9 this is necessary due to the new index structure (especially because of links).
