1.7.4.7.3.2.  Keys "LoadGeometryEnabled" and "LoadFromCadEnabled"

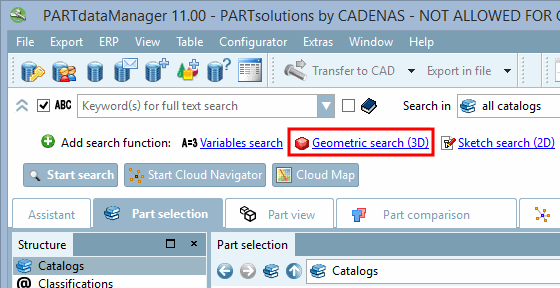

When clicking on Geometric search (3D) the same-named dialog box opens.

Call dialog box "Geometric search (3D)"

Call dialog box "Geometric search (3D)"

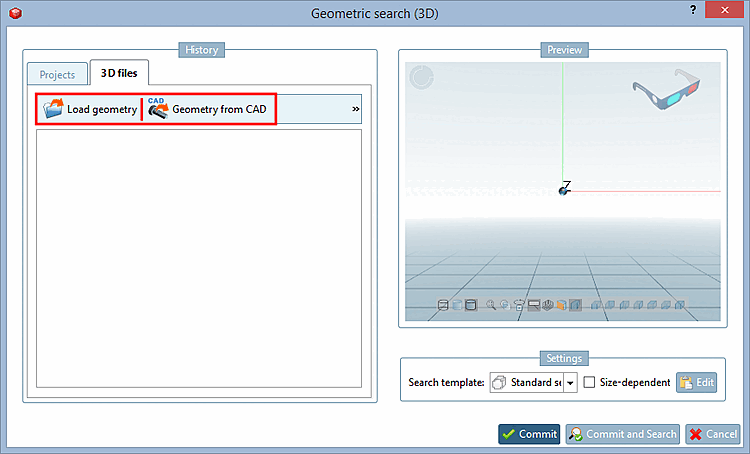

On the tabbed page 3D files you can hide the buttons Load geometry and Geometry from CAD via config key:

  • Load geometry:

    [SettingsSearch]
LoadGeometryEnabled=0

    1: show

    0: hide

  • Geometry from CAD:

    [SettingsSearch]
LoadFromCadEnabled=0

    1: show

    0: hide
