7.15.2. Horizontal, vertical and parallel dimensioning

7.15.2.1. Mandatory parameters
7.15.2.2. Optional parameters

The parameters for horizontal, vertical and parallel dimensioning are nearly identical. Differences are pointed out.

  • HORIZONTAL:

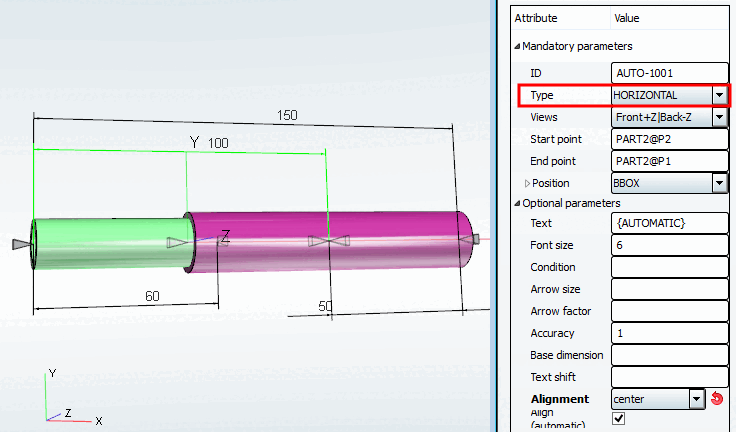

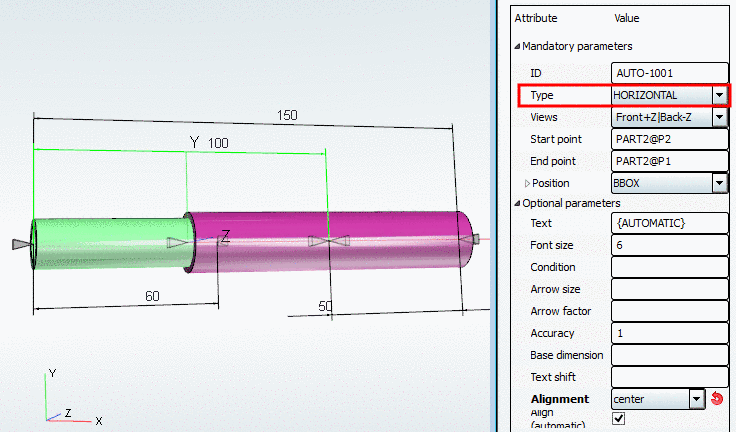

    Example: Horizontal dimensioning 3D

    Example: Horizontal dimensioning 3D

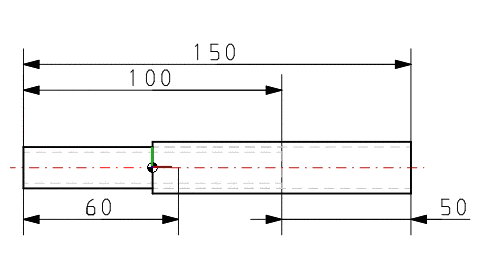

    Example: Horizontal dimensioning 2D

    Example: Horizontal dimensioning 2D

  • VERTICAL:

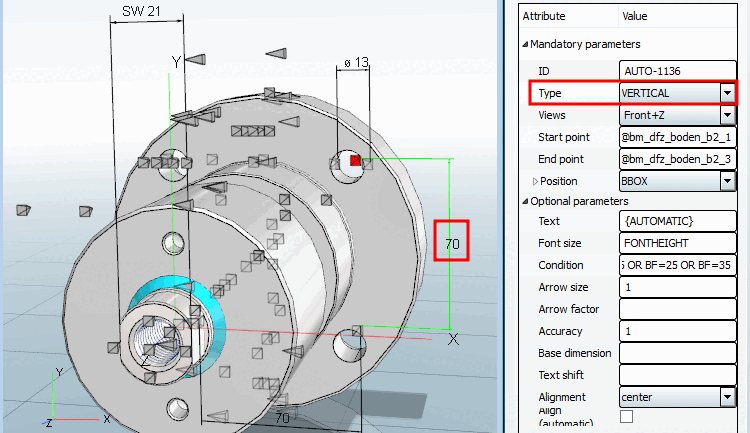

    Example vertical dimensioning 3D

    Example vertical dimensioning 3D

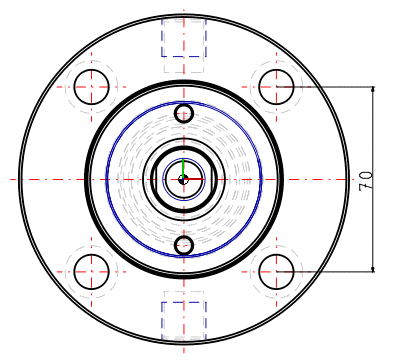

    Example vertical dimensioning 2D

    Example vertical dimensioning 2D

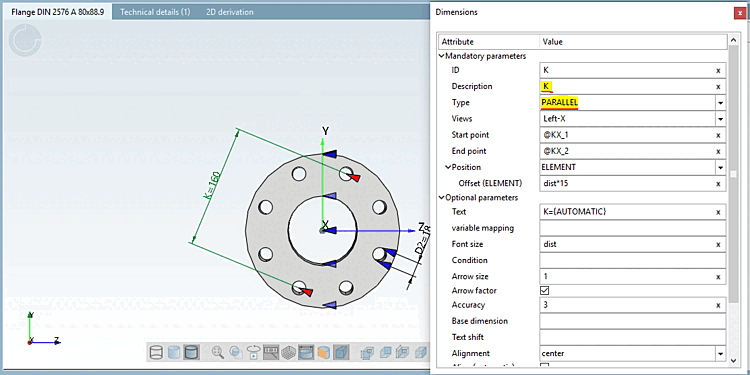

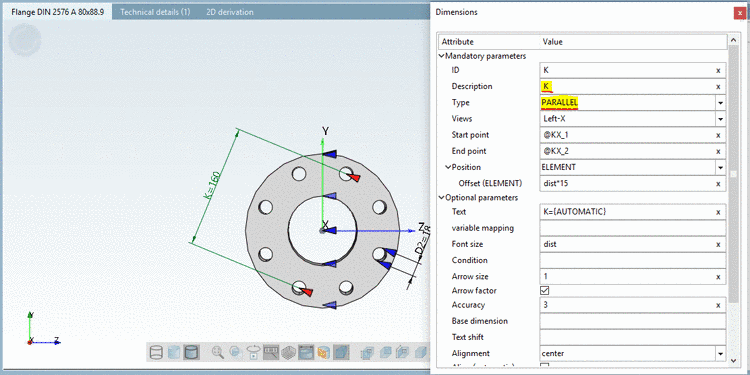

  • PARALLEL:

    Use the parallel dimensioning, if the measuring line is not orthogonal to the coordinate system.
