1.6.1.8.3. NX: Sweep Along Guiding Curve

[Note]Note

As of V12 SP1 the NX interface supports sweeps created with "guide curve".

Nevertheless take note that this feature is only officially available for future versions and is only an internal test version with V12.

Example:

  1. In PARTdesigner, in the context menu, in a Plane, click the command Create guide curve....

  2. Draw the Guiding curve and do not forget to set the Pattern origin.

    -> In the 3D History, the Guiding curve is displayed.

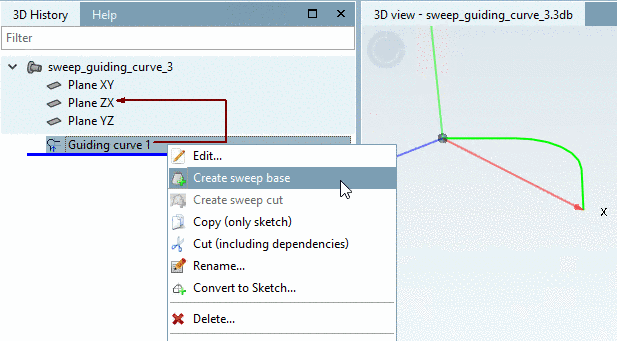

  3. In the context menu of Guiding curve, click Create sweep base.

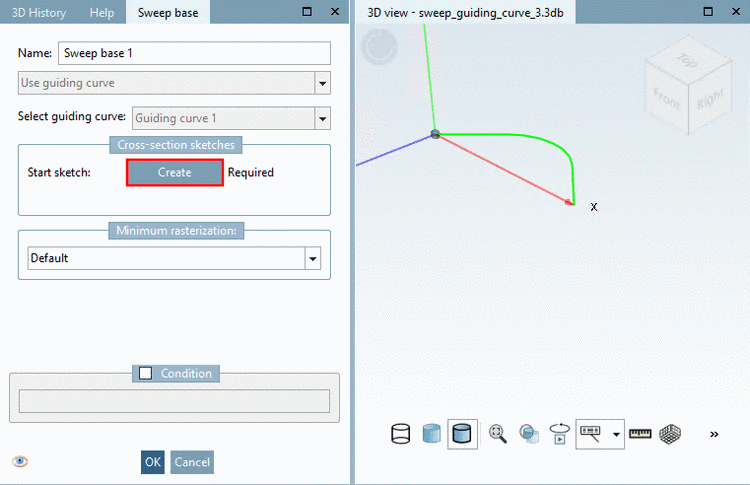

    -> Respective dialog area is opened.

  4. Under Start sketch, click Create.

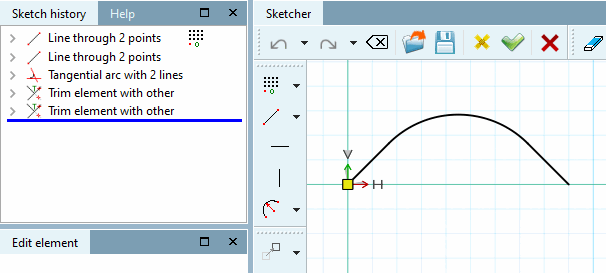

  5. Create the cross-section sketch.

  6. Now under Start sketch a green checkmark is shown and you can see a 3D preview. Close the dialog by clicking OK.

    -> The created guiding curve is displayed in the 3D preview.

  7. Export the part to NX.

More details can be found under Section 7.6.2.7.3, “Create sweep with Guide curve ” in eCATALOGsolutions Manual.
