3.1.6.10.4.1. 3D & 2D synchronization

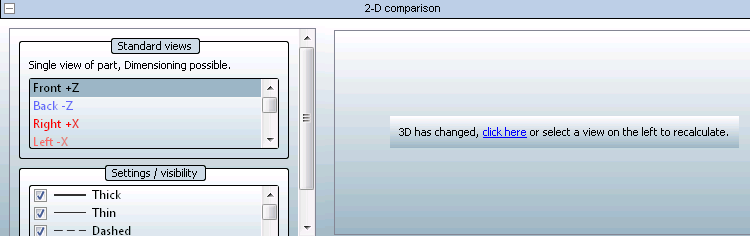

In order to synchronize the 2D comparison and 3D comparison simply click on "click here".

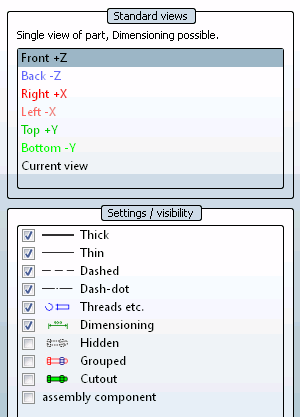

-> All derivations are calculated. You can select them in the dialog window.

The Front, Back, Right, Left, Top and Bottom views are independent from the settings in the 3D view.

With Current view you take over the exact depiction from the 3D comparison.
