1.3.4.12.3.5.  Cylinder

With this function you can search for inner or outer cylinders or half cylinder, quarter cylinders or broadly speaking sections of cylinders.

  • Amount: Amount of cylinders in the searched part

  • Diameter / Length:

    Example: Inner cylinder - length and diameter

    Example: Inner cylinder - length and diameter

    Example: Outer cylinder - length and diameter

    Example: Outer cylinder - length and diameter

  • Orientation:

    • Inner

    • Outer

  • Sweep angle defines the rotation around the cylinder's main axis (in direction of length), which spans the cylinder surface. With this you can search for cylindrical sections, e.g. full cylinder (angle = 360°), half cylinder (angle = 180°), quarter cylinder (angle = 90°).

    Example of inner cylinder - Sweep angle 180° (half cylinder)

    Example of inner cylinder - Sweep angle 180° (half cylinder)

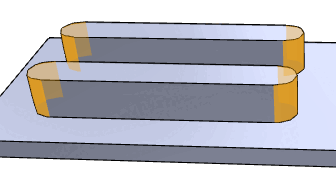

    Example of outer cylinder - Sweep angle 180° (half cylinder)

    Example of outer cylinder - Sweep angle 180° (half cylinder)
