1.3.4.12.3.8.  Sphere

With this you can search for spheres or sections of spheres such as semi-spheres or rounded edges, for example.

  • Amount: Amount of spheres in the searched part

  • Diameter: Sphere diameter

  • Orientation:

    • Inner

      Section of sphere - Orientation: Inner

      Section of sphere - Orientation: Inner

    • Outer

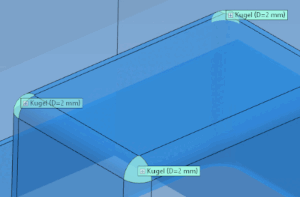

      Section of sphere - Orientation: Outer

      Section of sphere - Orientation: Outer
