3.1.19.2.7.14.  Settings...

Via Extras menu -> Settings... you may call up the same-named dialog box.

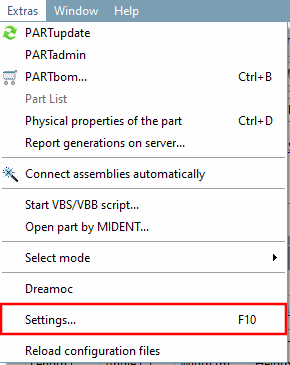

Extras menu -> Settings...

Extras menu -> Settings...

Dialog box Settings

Dialog box Settings

  • Table

  • Bill of material

  • META

  • Assembly

  • Colors

  • Log settings

  • 3D settings

  • Part selection

  • Network

  • Web-Assistant

  • Export to CAD

  • Administrator

  • 2D view

  • Search

The dialog box Settings with all its sub-pages (see above list) is described in detail under Section 3.3, “ Settings... ”.

[Note]Note

  • Every change that takes place here - until the next change - creates the basic setting (default) for the next program launch!

  • Settings made in the Settings window have priority over the settings in the Part view itself (transparency, edge display, etc.)!
