As of V11 SP12
there is the possibility to explicitly determine the variables' sort
sequence as is should then be displayed in the characteristic attribute
table. For this, now the configuration file vdi3805import.cfg. contains the key
"_SORT". You can find it after the wizard's first run under $CADENAS_USER/vdi.
The block numbers in the configuration file correspond to the sheet numbers. So for example: For sheet 20 the block 20 is relevant.
Configuration file
vdi3805import.cfg, excerpt block 20[20] _PATH=$SA010ID02./$SA100ID04./$SA110ID04. _NAME=Speicher und Durchlauferhitzer _SORT=SA010ID05, SA010ID04, SA010ID03, SA810ID03, SA810ID04, SA810ID06, SA810ID10, SA700ID04,
SA100ID04, SA110ID04, SA200ID03, SA300ID03, SA400ID03, SA450ID03, SA500ID03, SA550ID03,
SA700ID06, SA700ID07, SA700ID08, SA700ID09, SA700ID04
SA010ID03={"desc":{"deu":"Ausgabedatum (Monat) der Richtlinie","eng":"Issue date (month) ...
SA010ID04={"desc":{"deu":"Herstellername","eng":"Manufacturer’s name"}}
SA010ID05={"desc":{"deu":"Revisionsdatum der Datei","eng":"Revision data of the file"}}
#SA010ID06={"desc":{"deu":"Webadresse des Herstellers","eng":"Manufacturer’s web address"}}
#SA010ID07={"desc":{"deu":"Kommentarfeld","eng":"Comment"}}
...You can find the sheet numbers in PARTproject by the index structure.
Furthermore you will also find the sheet numbers in the VDI or PDT file right at the beginning.
See following example of a VDI file:
010;20;200602;Company 08/2015;20150810;Company.de;Armaturen aus Rotguss und Edelstahl,
Revision by www.....de, Stand 01/2015;;;;;;DEU;DE;
100;5;5;Durchflusstrinkwassererwärmer;;;20120405;
110;1;1;Heizwasser;;;20120405;
200;4;nicht rostender Stahl;
300;3;wandhängend;
400;1;Geschlossen/druckfest;
450;1;monovalent;If "_SORT" includes all variables, the sort sequence will be accordingly displayed in the characteristic attribute table.
If "_SORT" only includes a selection of variables, they will be displayed at the begin and the rest follows behind.
Keys which shall not be visible can be commented out by "#".
If only the sort sequence has been changed, you can select the option Skip geometry under Mode.

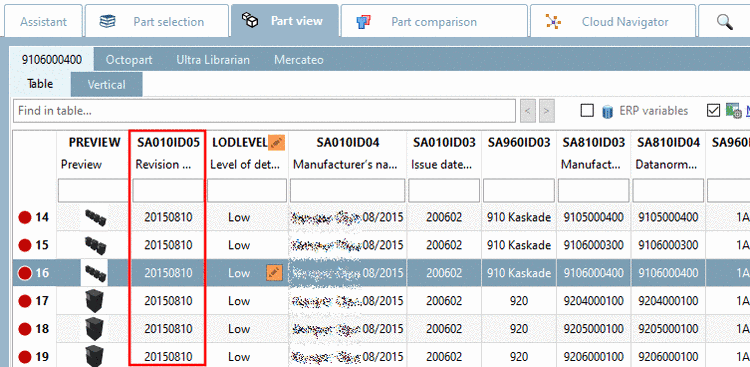

[20] _PATH=$SA010ID02./$SA100ID04./$SA110ID04. _NAME=Speicher und Durchlauferhitzer _SORT=SA010ID04,SA010ID03,SA010ID05 SA010ID03={"desc":{"deu":"Ausgabedatum (Monat) der Richtlinie","eng":"Issue date (month) ... SA010ID04={"desc":{"deu":"Herstellername","eng":"Manufacturer’s name"}} SA010ID05={"desc":{"deu":"Revisionsdatum der Datei","eng":"Revision data of the file"}} #SA010ID06={"desc":{"deu":"Webadresse des Herstellers","eng":"Manufacturer’s web address"}} #SA010ID07={"desc":{"deu":"Kommentarfeld","eng":"Comment"}}
[20] _PATH=$SA010ID02./$SA100ID04./$SA110ID04. _NAME=Speicher und Durchlauferhitzer _SORT=SA010ID05,SA010ID04,SA010ID03 SA010ID03={"desc":{"deu":"Ausgabedatum (Monat) der Richtlinie","eng":"Issue date (month) ... SA010ID04={"desc":{"deu":"Herstellername","eng":"Manufacturer’s name"}} SA010ID05={"desc":{"deu":"Revisionsdatum der Datei","eng":"Revision data of the file"}} #SA010ID06={"desc":{"deu":"Webadresse des Herstellers","eng":"Manufacturer’s web address"}} #SA010ID07={"desc":{"deu":"Kommentarfeld","eng":"Comment"}}
Details can be found under Section 5.8.2.1.15.33, “VDI 3805 Importer ” in eCATALOGsolutions Manual.
