3.9. Open Seamless with Geosearch function

Initial situation: Seamless is set in PARTcadAssistant.

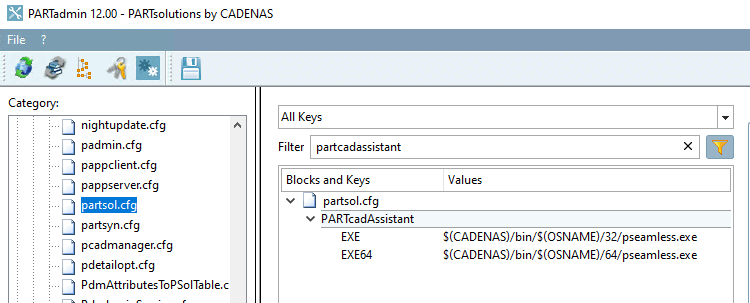

partsol.cfg -> block "PARTcadAssistant"

partsol.cfg -> block "PARTcadAssistant"

Nevertheless PARTdatamanger is opened when clicking Execute Geometric Search.

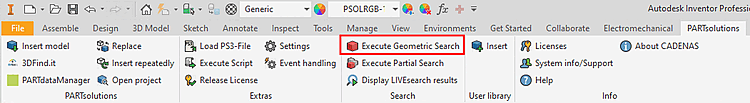

CAD menu -> Execute Geometric Search

CAD menu -> CAD menu -> Execute Geometric Search Execute Geometric Search

Do the following in order to change the behavior:[24]

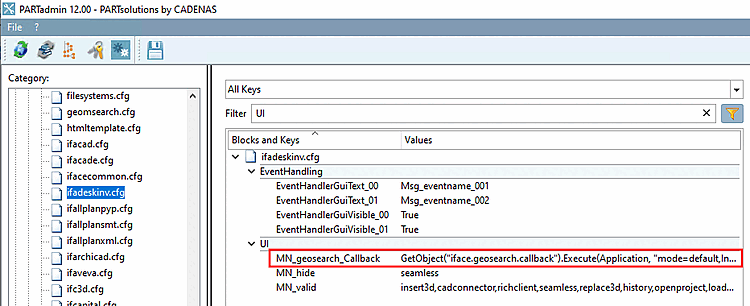

  1. In the desired if<cadname>.cfg, in the block UI, add the key MN_geosearch_Callback.

  2. Make following entry:

    GetObject("iface.geosearch.callback").Execute(Application, "mode=default,Interactive=1,
 OrderGet=GetSeamless;GetPartDataManager,OrderStart=StartSeamless;StartPartDataManager")

    -> Now Seamless will open.



[24] #143599
