12.2.2.2.2.2. Adjust paper format in 2D view

In the list field under Paper formats select the desired format. (Either A0 to A4 for DIN or A to E for ANSI)[126]

Select paper format

Select paper format

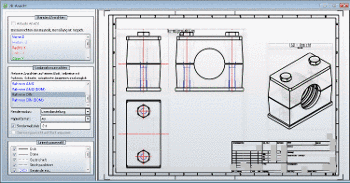

Paper format A3 -> Default scaling 2:1

Paper format A3 -> Default scaling 2:1

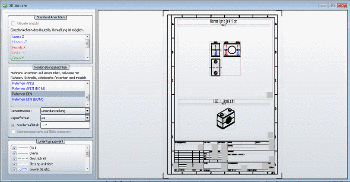

Paper format A4 -> Default scaling 1:2

Paper format A4 -> Default scaling 1:2

-> Scaling is adjusted automatically. As described under Section 12.2.2.2.2.1, “ Scale, position sketch elements in 2D view”, you may change it.



[126] Default values for the paper formats are given per configuration file. See under Section 7.11, “Docking window "2D derivation" - Create own Combination views (*.dw) ”.
