Search results of
a Topology search are displayed on the respective
tabbed page as usual. The tab shows the respective icon
.

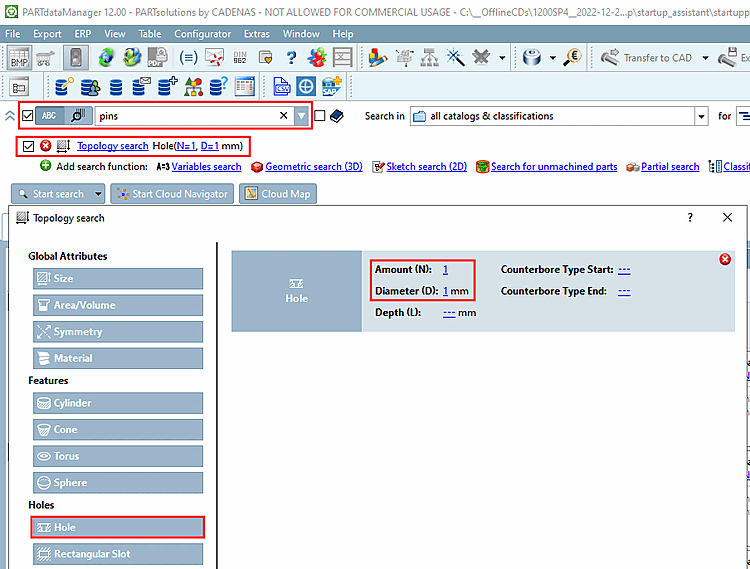

The following
figures show the results of a combined search for "pins" (Full-text search
) and the topological feature Hole.

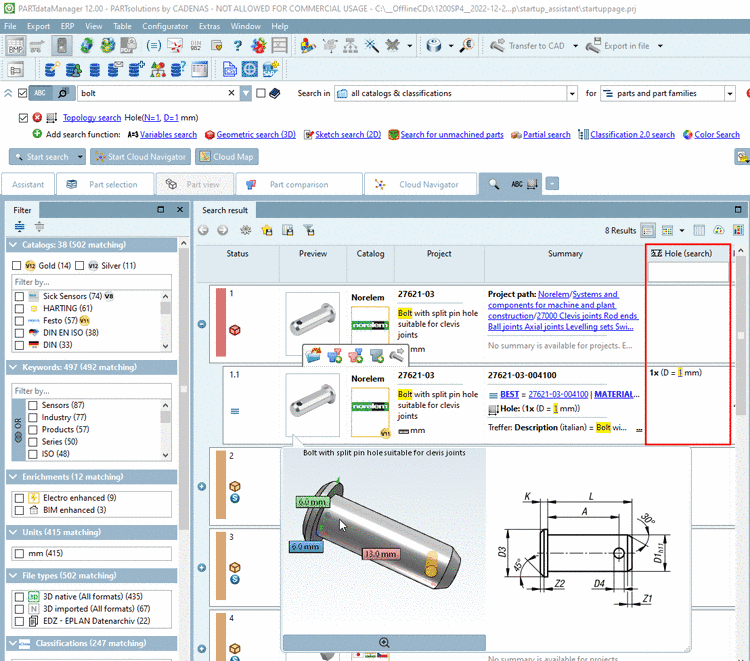

At Topology search found values are colored and displayed in the corresponding table column.
Table columns corresponding to topological attributes are automatically displayed (but have to be manually sorted to the front).
Features such as cylinder, cone, etc., where Topology search is searching for, are colored in the tooltip of search results and in the 3D view.

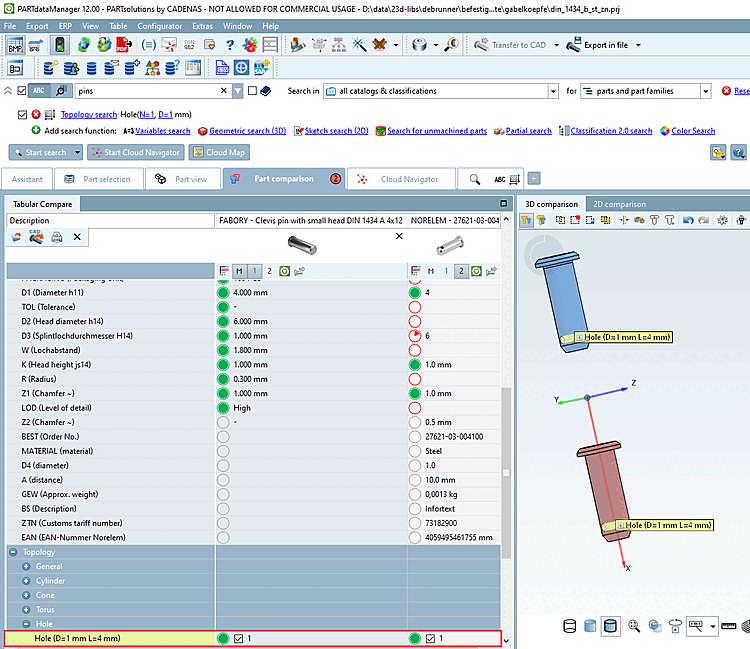

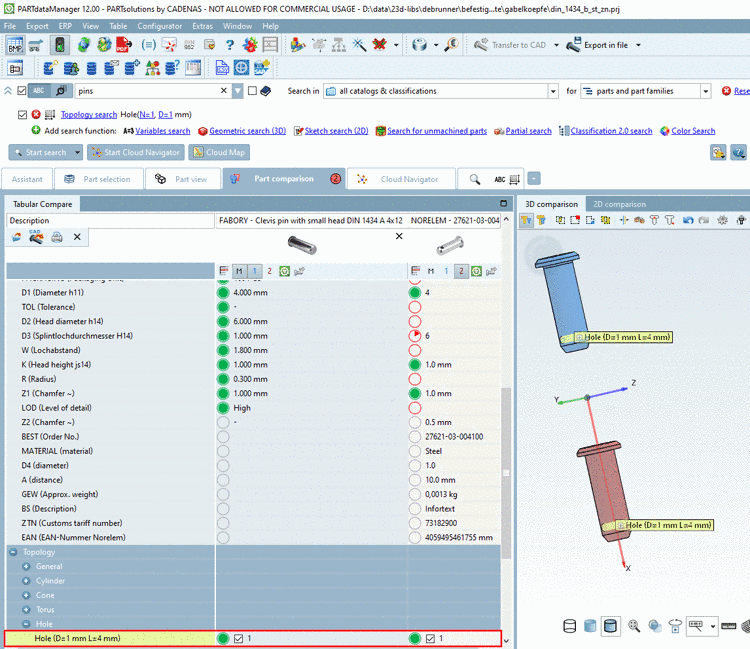

By default, the display of topological information in Part comparison is disabled. However, if search results of a Topology search are opened, the topological attributes under Tabular Compare are already marked, the respective checkboxes already selected and so the respective information in the 3D comparison displayed as well.
