7.6.2.7.2. Create sweep between nonparallel planes

  1. Select two or more sketches you want to merge to a sweep and click on the context menu command Create sweep base.

    [Note]Note

    Absolutely, select the sketches in the correct sequence.

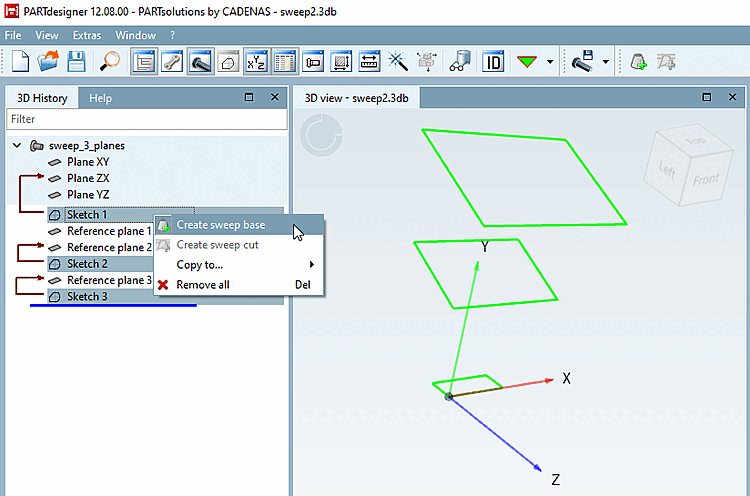

    Create sweep base: Call

    Create sweep base: Call

    -> The tabbed page Sweep base is opened.

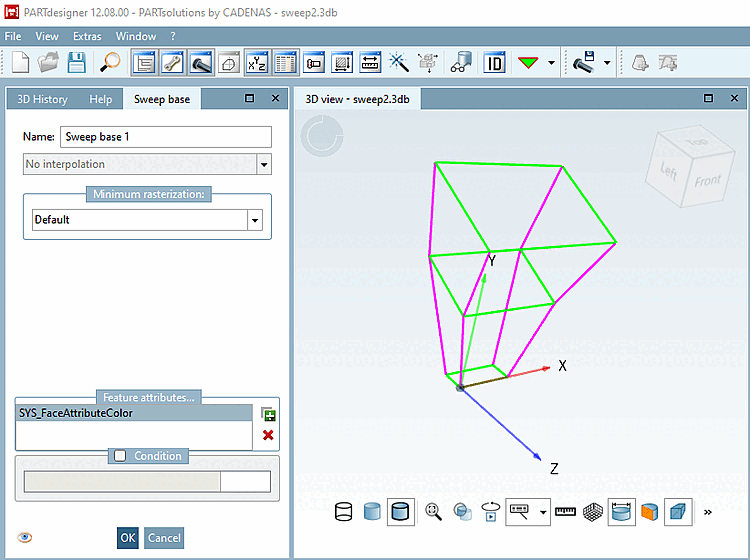

    Sweep base: Dialog

    Sweep base: Dialog

  2. Enter the desired name and confirm with OK.

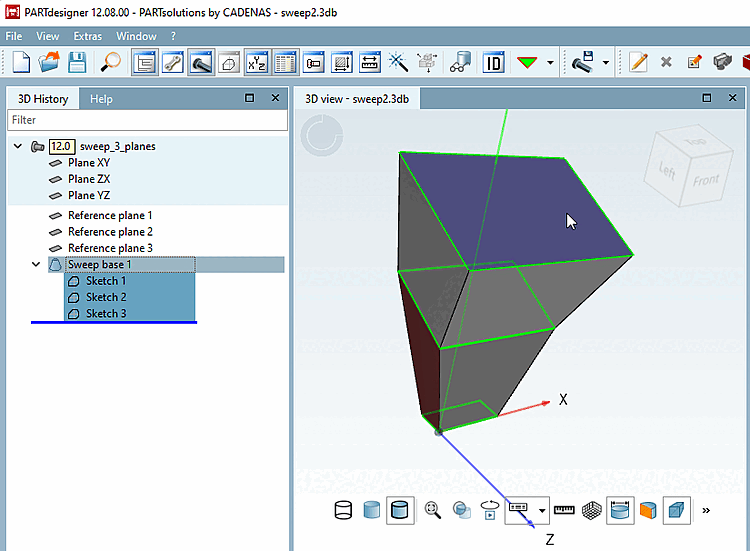

    Sweep base: Result
