2.3.8.4.  Attribute mapping in Solid Edge

2.3.8.4.1. Block [AttributeMapping(is3d)]
2.3.8.4.2. Block [CadDocumentAttributes] - Transfer custom attributes
2.3.8.4.3. Block [CadDocumentAttributes] - Transfer further extra attributes
2.3.8.4.4. Block [ProjectInformation]
2.3.8.4.5. Blocks [SummaryInformation] and [DocumentSummaryInformation]
2.3.8.4.6. Fill more fields in Solid Edge with PARTsolutions attributes
2.3.8.4.6.1. Field names in Solid Edge
2.3.8.4.7. Set different languages for attributes

PARTsolutions variables (geometric, NT, NN, LINA, etc.) and all fields in the link database (if an ERP connection exists) may be transferred to Solid Edge via attribute mapping.

These are then available on the dialog page Properties and in the Bom list.

Solid Edge: tabbed page "User-defined"

Solid Edge: tabbed page "User-defined"

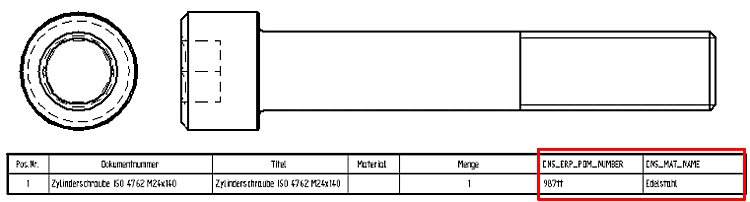

Solid Edge: BOM list enhanced with "CNS_ERP_PDM_NUMBER" and "CNS_MAT_NAME"

Solid Edge: BOM list enhanced with "CNS_ERP_PDM_NUMBER" and "CNS_MAT_NAME"

In PARTadmin open the category CAD integration -> Solid Edge.

Attribute mapping is controlled by the following blocks:

The following describes the individual blocks:

[Note]Note

For editing settings, admin rights are required!
