1.2.8.2.  Report node

Use the Report node in order to log errors.

[Note]Note

Report Node only works in cooperation with PARTapplicationServer. (XML writer always works.)

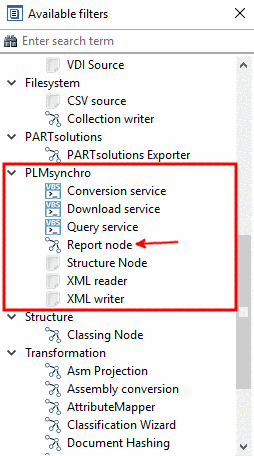

  1. Draw the Report node from the dialog area Available filters into the process area.

  2. Select the node Konvertierungsservice with secondary mouse key and draw an edge into the Report node.

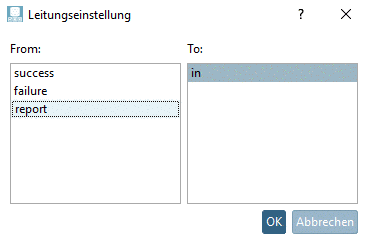

    -> The dialog box Pipe settings is opened.

    Select report, then in and finally confirm with OK.

    -> The edge is set.

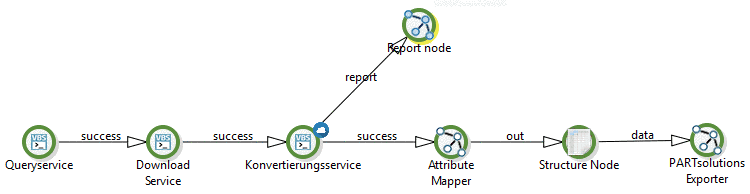

Result:

[Tip]Tip

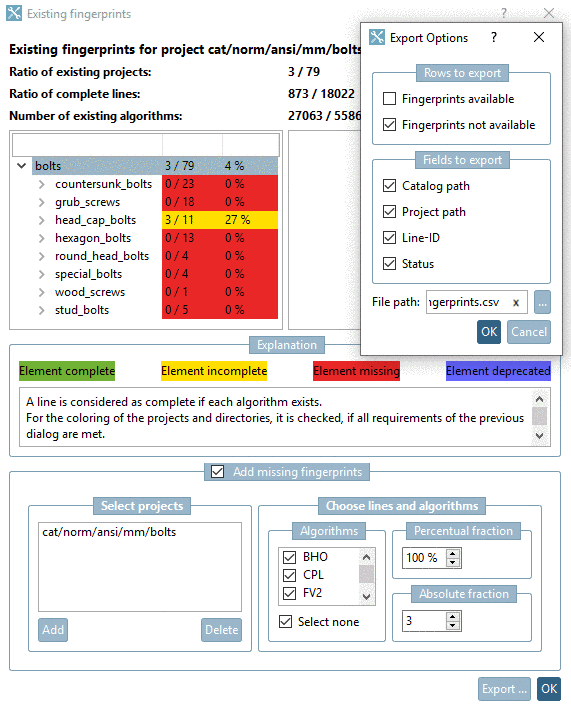

In PARTadmin, lines without fingerprints can be filtered and exported as CSV file.

"CATALOG";"PROJECT";"LINEID";"STATUS"
"cat/norm/ansi";"mm/bolts/countersunk_bolts/ansi_b18_6_5m_t1crfchts_a.prj";"21530";"1"
"cat/norm/ansi";"mm/bolts/countersunk_bolts/ansi_b18_6_5m_t1crfchts_a.prj";"21540";"0"
"cat/norm/ansi";"mm/bolts/countersunk_bolts/ansi_b18_6_5m_t1crfchts_a.prj";"21550";"0"
"cat/norm/ansi";"mm/bolts/countersunk_bolts/ansi_b18_6_5m_t1crfchts_a.prj";"21560";"0"

Details on this can be found under Fingerprints verwalten.
