7.13.4. Create subassembly

7.13.4.1. Provide required parts for configuration
7.13.4.2. Insert double T-beam into docking window "Assembly" via rule
7.13.4.3. Insert condition for double T-beam
7.13.4.4. Add shared connection point for starter part
7.13.4.5. Insert "Pipe clip" into Assembly via rule
7.13.4.6. Set Variable shares
7.13.4.7. Insert condition for pipe clip
7.13.4.8. Position pipe clip

Besides the opportunity to connect single parts to create an assembly, you also can merge single parts with assemblies and assemblies with assemblies.

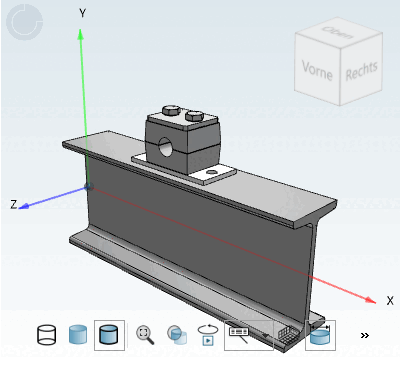

In following example, a pipe clamp [assembly] shall be set on a double T-beam [single part].

[Note]Note

You can find this example in the training catalog under training/subassembly.
