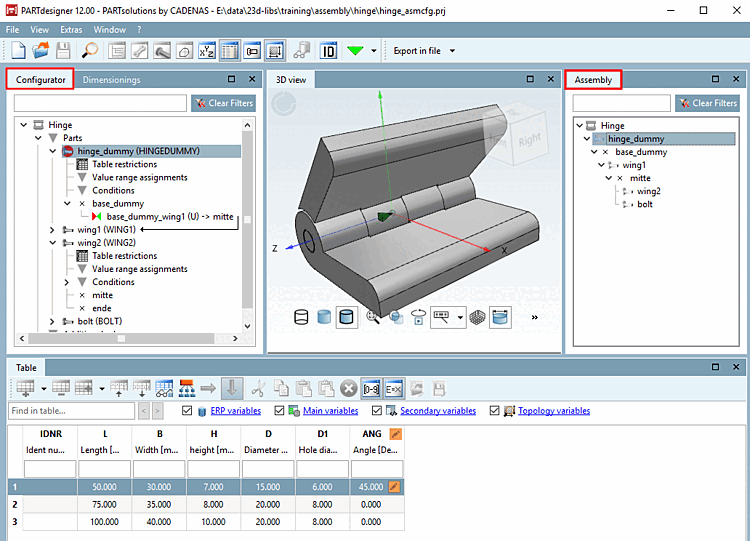

In the docking window Configurator, the set of rules is created, which builds up an assembly from single parts. Via context menus, Rules are specified for each connection point and Conditions for each part.
The docking window Assembly shows how the single parts are connected among each other and serves the part selection.
In the following the docking windows Configurator and Assembly with their specific context menus will be described.
