1.3.4.10.6.7.  Partial search : Different similarities with or without consideration the geometrical arrangement

Special geometrical arrangements are taken into account for the calculation of similarity.

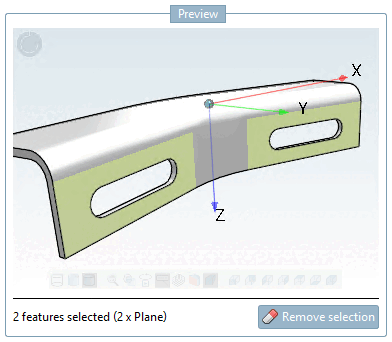

  • 1. case: Two planes forming a certain angle are selected.

    Selection

    Selection

    [Note]Note

    Similarities are detected based on the slotted hole and the angle between the two faces.

    So results will be less than in second case (see next point).

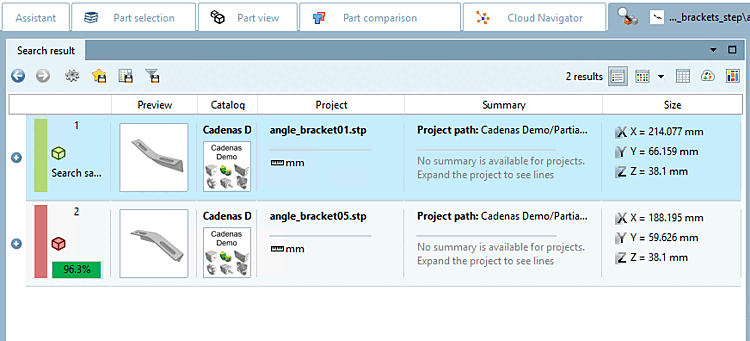

    Result

    Result

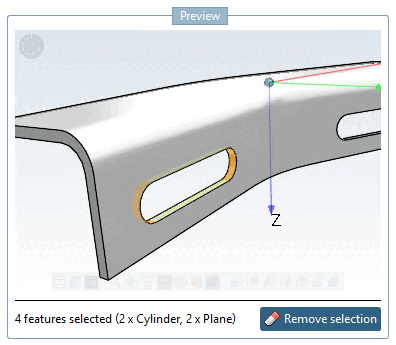

  • 2. case: Four features building a slotted hole are selected.

    Selection

    Selection

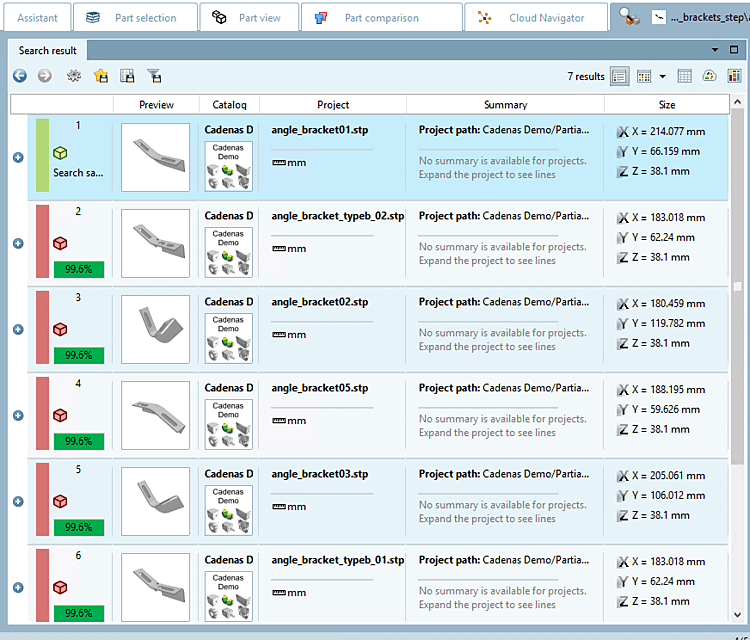

    All parts containing such a slotted hole are found.

    Result

    Result

[Note]Note

The angle is important? Then mark 2 planes which include the angle.

The slotted hole is the decisive criterion? Then only mark this.

The percental value of geometric similarity mirrors the difference.
