Special geometric arrangements are included in the similarity evaluation of the search results.

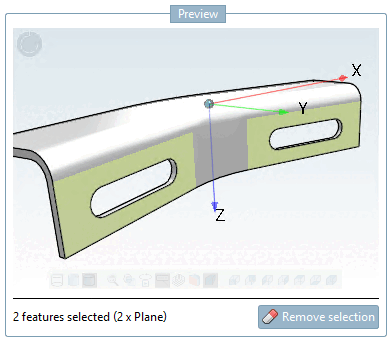

1st case: Two surfaces are selected that are at a certain angle to each other.
Selection

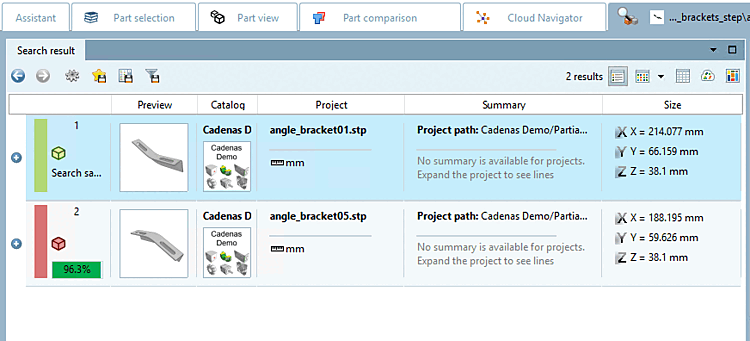

Similarities are determined both on the basis of the slotted hole section and the angular position of the surfaces in relation to each other.
The results here are therefore lower than in the 2nd case.
Result

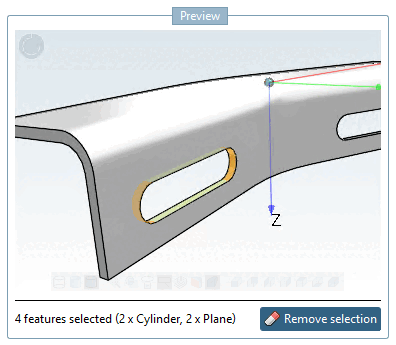

2nd case: 4 features of a slot are selected.

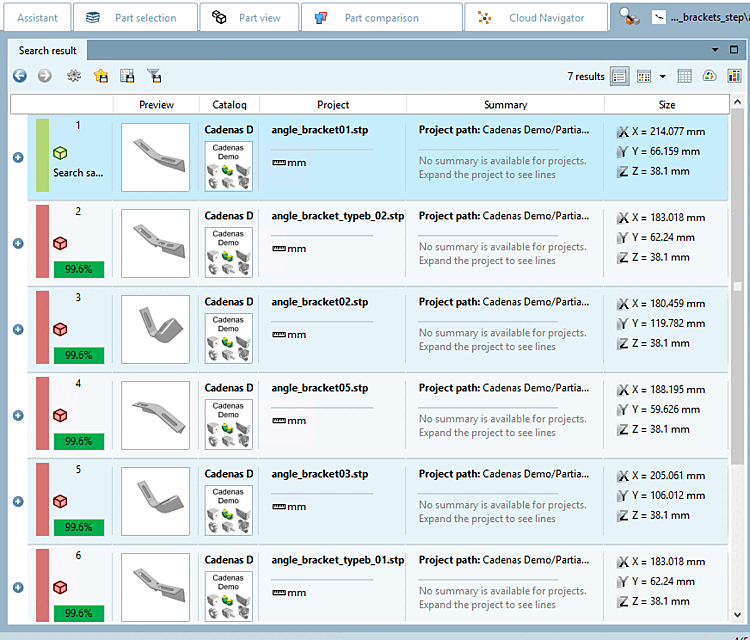

All parts containing this slot are found.
Is the angle important? Then mark 2 surfaces that include the angle.
Is the slotted hole feature the decisive factor? Then select only this one.
The percentage geometric similarity value will reflect this difference.
