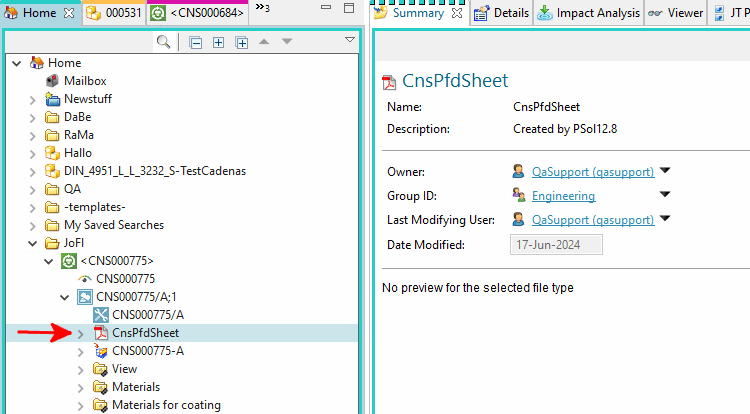

With the HOOK_SERVICE "CreateCustomDataset" you can add a PDF file, for example, as Dataset to an Item or Item Revision.^[59]

Figura 3.54.

	Nota
	Use if[nx|cns]teamcenter.cfg with active custom dataset creation (TC_HookService_CreateCustomDataset_Attributes). Also see config file help texts.

For a quick test, use following settings:

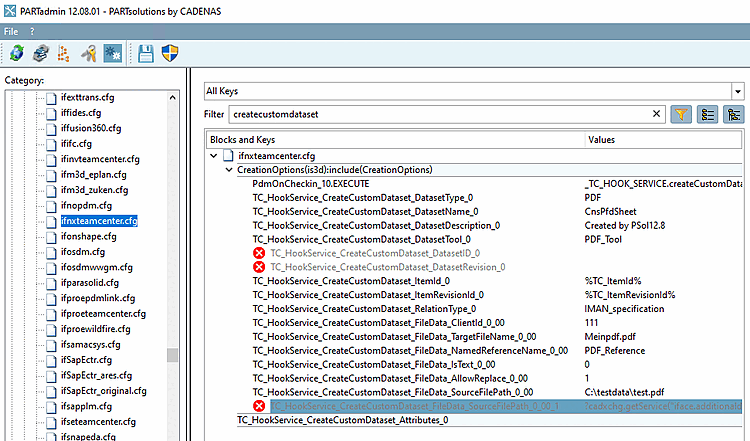

Figura 3.55. Example: ifnxteamcenter.cfg

PdmOnCheckin_10.EXECUTE(isRootDoc)=_TC_HOOK_SERVICE.createCustomDataset(para.Item(0), "0")
TC_HookService_CreateCustomDataset_DatasetType_0=PDF
TC_HookService_CreateCustomDataset_DatasetName_0=CnsPdfSheet
TC_HookService_CreateCustomDataset_DatasetDescription_0=Created by PSol12.8
TC_HookService_CreateCustomDataset_DatasetTool_0=PDF_Tool
TC_HookService_CreateCustomDataset_ItemId_0=%TC_ItemId%
TC_HookService_CreateCustomDataset_ItemRevisionId_0=%TC_ItemRevisionId%
TC_HookService_CreateCustomDataset_RelationType_0=IMAN_specification
TC_HookService_CreateCustomDataset_FileData_ClientId_0_00=111
TC_HookService_CreateCustomDataset_FileData_TargetFileName_0_00=Meinpdf.pdf
TC_HookService_CreateCustomDataset_FileData_NamedReferenceName_0_00=PDF_Reference
TC_HookService_CreateCustomDataset_FileData_IsText_0_00=0
TC_HookService_CreateCustomDataset_FileData_AllowReplace_0_00=1
TC_HookService_CreateCustomDataset_FileData_SourceFilePath_0_00=C:\testdata\test.pdf

	Nota

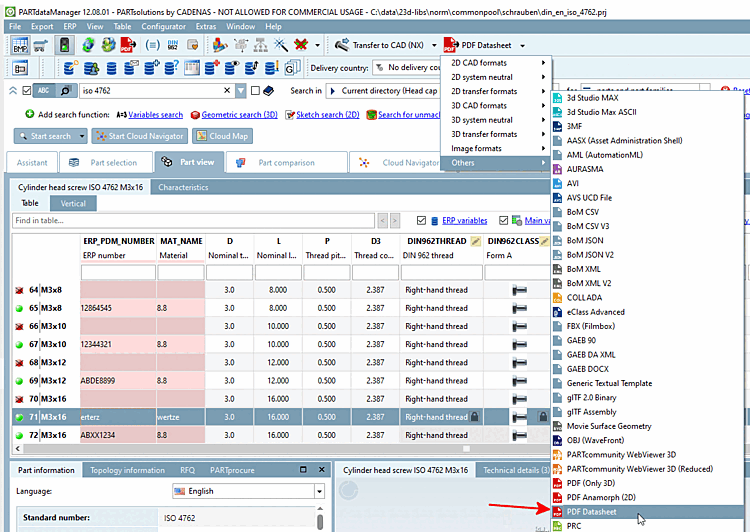

	In a future version it should be possible to automatically attach a PDF datasheet, for example, meaning the one you could manually export using Export in Datei [Export in file] > Sonstige [Others] > PDF Datasheet. Figura 3.56. Export "PDF Datasheet" manually Currently Consulting can do this.
