7.6.2.7.  Sweep base / Sweep cut

7.6.2.7.1. Sweep between two parallel planes (standard variant)
7.6.2.7.2. Create sweep between nonparallel planes
7.6.2.7.3. Create sweep with Guide curve
7.6.2.7.3.1. Variant 1: Initially created by guiding sketch only
7.6.2.7.3.2. Variant 2: Guide curve and cross-sectional sketch separately created
7.6.2.7.4. More notes

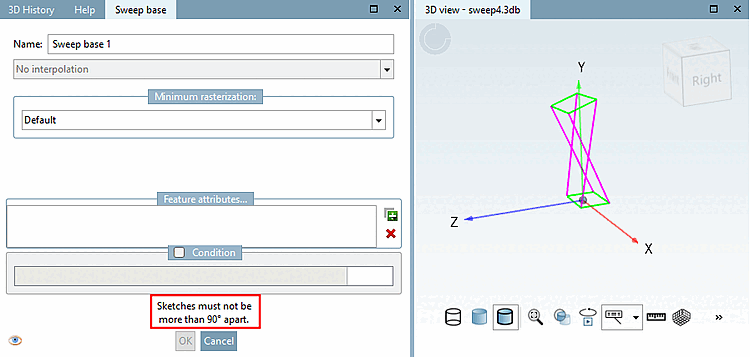

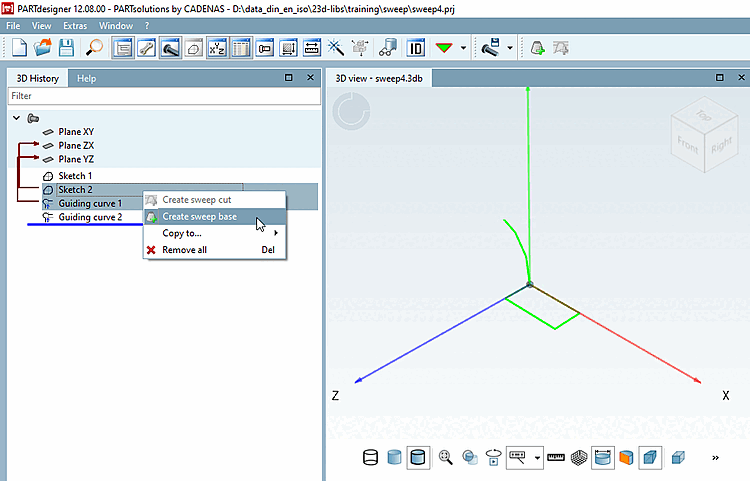

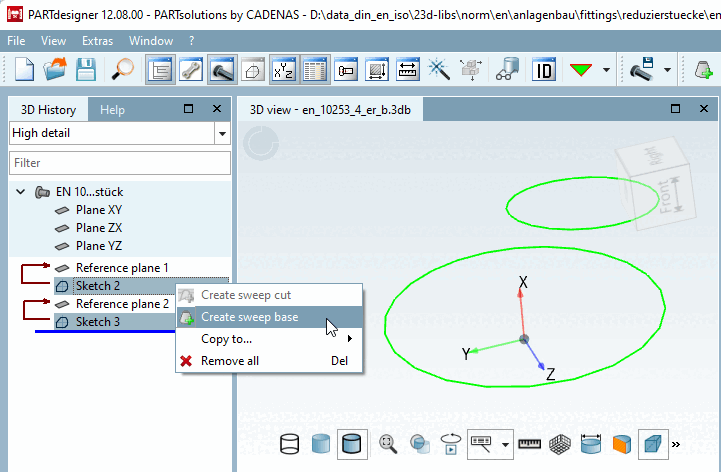

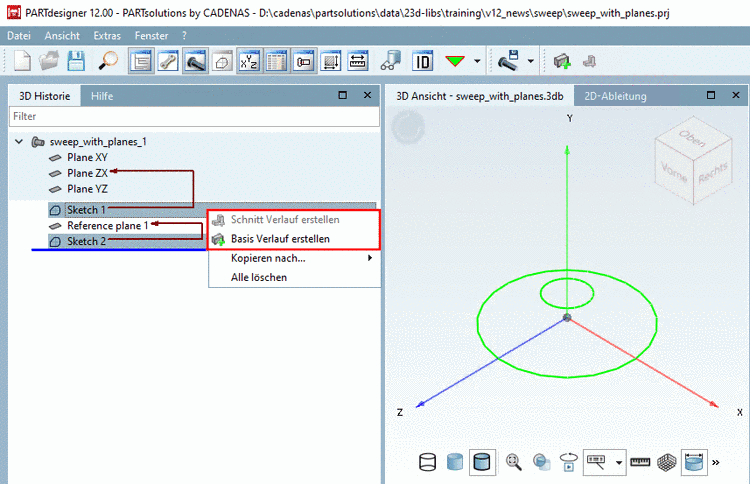

With the standard variant, sweeps can be created via 2 parallel planes (they do not have to be on a plane mandatorily; the creation of a sketch in the 3D view via Generate sketch on selected face is also possible). The sweep's creation is performed by selecting two sketches and the context menu command Create sweep base or Create sweep cut.

[Note]Note

In the course of a demo version there are still other features:
